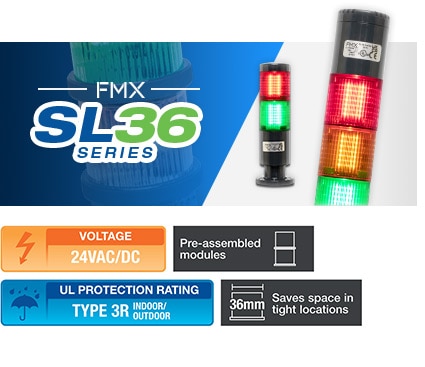

FMX 36mm Stacklights
FMX FMX 36mm Stack Lights
- 36mm diameter for locations with very limited space
- All models feature integrated LEDs for long life
- Pre-assembled with mounting foot, gasket, and wiring pigtail for fast and easy installation
- 24VAC/DC input power
- UL Type 3R Indoor/Outdoor
- Shares mounting accessories with FMX 50mm and 70mm Stack Lights

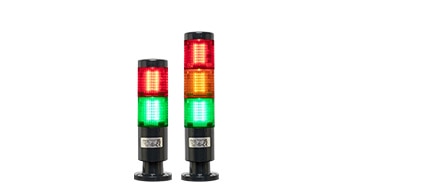

Visual-Only Models
- Available in Green/Red and Green/Red/Amber configurations
- Multiple Integrated LEDs for uniform light emission longer life

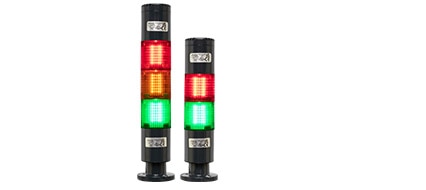

Visual & Sound Models
- A combination of light and sound to alert operators even if the stacklight is out of sight
- 72dB sound output with pulsing tone to ensure alarm is noticed in a noisy environment
- UL Type 3R indoor/outdoor protection
Visual-Only Models
Visual & Sound Models
- Available in Green/Red and Green/Red/Amber configurations
- Multiple Integrated LEDs for uniform light emission longer life
Visual & Sound Models
- A combination of light and sound to alert operators even if the stacklight is out of sight
- 72dB sound output with pulsing tone to ensure alarm is noticed in a noisy environment
- UL Type 3R indoor/outdoor protection
Integrated LED Light Modules
All SL36 series stacklights feature integrated LED's. This means that they do not require bulbs or bulb replacement.
Specifications
| Electrical Data | |
|---|---|
| Operating Temperature | -22 to 122° F (-30 to 50° C) |
| Light Module Current Consumption | 50mA per module |
| Sound Module Current Consumption | 10mA per module |
| Light Output | 1cd (p) |
| Sound Output | 72db(A) at 1m, 4000Hz |
| Service Life | Min. 100,000 hours |
| Materials | |
| Lens and Bases | Polycarbonate, UL746C (f1), UL94 V-2, Dark Gray RAL 7016 |
| Base Gasket | Santoprene |
| Module Gasket | Silicone |
| O-Ring | VITON Rubber |
| Environmental | |
| Protection Degree | UL Type 3R, IP54, UL File # E362598 |

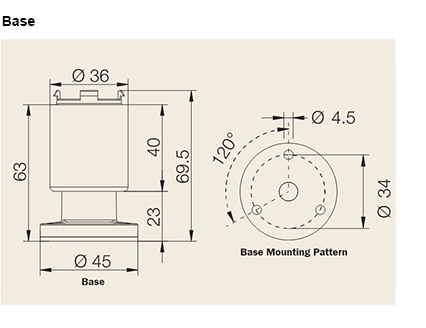

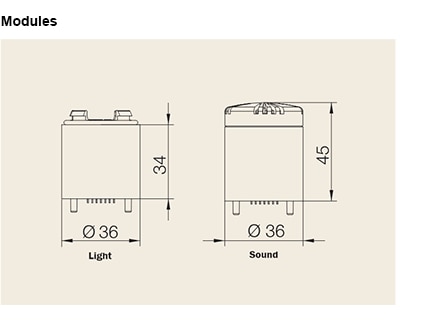

Dimensions (mm)
Colored Lenses with Colored Lights
and Sound Modules
