PRODUCT FEATURES
HIDE
OVERVIEW
CONNECTIONS
SOFTWARE
KNOWLEDGE BASE
IMO Overview
High-Res-Display
HIGH RESOLUTION DISPLAYS
  • Bright and easy to see TFT Screen with 65K colors
  • Unlimited touch points allows for objects to be interacted with anywhere on the screen
  • Resistive touchscreen allows operator to use the panel when wearing gloves
B
IP66 INGRESS PROTECTION
  • Dust proof and water resistant. Capable of withstanding powerful wash-down and a wide temperature range
  • Ambient temperature range from 14°F to 140°F
380 Protocols
OVER 380 PROTOCOLS
  • Connect a vast range of PLCs and controllers from numerous manufacturers
Bezel Options
BEZEL OPTIONS
  • Choose between a rugged plastic bezel or sleek food grade aluminum bezel
M-Series
M Series
Features
  • Built-in Ethernet port with FTP functionality
  • Automatically receive email updates for system events and logs
  • Remote control and monitoring through a VNC communication – just like being in front of the touch screen – without actually being there
  • Data/Operation/Alarm Logging
    • Alarms and gathered data can be stored in the iView or coped out to an external device as a CSV for easy review
  • Real Time Clock
    • Useful for time based events and automatic compiling of datalogs
  • Bright and easy to see screens
  • Rugged Plastic or Sleek Aluminum Bezel
  • IP66 Rated

H-Series
H Series
Features
  • Standard robust Aluminum Bezel
  • Exceptional 4X Processing Speed
    • Capable of handling a large number of project screens
    • Simultaneously connect to multiple PLCs with a large amount of I/O polling
    • Simultaneously use multiple communication protocols
    • Use many complex scripts and macros
    • Playback on-board video with audio output
  • Expansive 32X System Memory
  • Audio output and Video playback available on select models

MicroSD&USB
Multiple data storage options to choose from
  • System Storage memory can be expanded with use of USB drives and MicroSD cards
    • Up to 16GB of additional data supported on a MicroSD card. USB capacity has no limit
  • Store videos and other large files on the SD card or USB drive for play back on the HMI
  • Use USB drives and MicroSD cards to quickly and easily transfer data logs from the iView to a computer for review when other connections are not available


What is an HMI Touch Panel?

An HMI Touch Panel
A Human-Machine Interface (HMI) touch panel device is simply an interface between a user and a machine or control system in a manufacturing process. More specifically, an HMI device depicts a textual, graphical, and/or visual representation of the status of a control system by collecting, recording, and displaying data in real-time.

HMI Applications
HMI touch panels are closely associated with industrial and mechanical process control systems, and can be used in industries including, but not limited to: motion control, packaging machinery, food processing, pump control, water & wastewater treatment, oil & gas, vehicle management, environmental control, alarm systems, building management, etc.

Depending on the project environment and application, HMI touch panels can:
  • Connect, monitor, and control machines/processes (i.e. speed, efficiency, error detection, error correction)
  • Provide status reports
  • Execute event logging/triggering (i.e. alarm conditions)
  • Provide video feed for status monitoring
  • Display system conditions/operations
  • Display vital information that would be absent with simple pushbutton panels or switch banks



Connecting the HMI

For a machine or manufacturing line to be connected to an HMI touch panel, it must first be connected to a device such as a programmable logic controller (PLC), variable frequency drive (VFD), or other controller. The PLC, VFD, or other controller collects the information from the machine sensors and then formats the data to create a message that can communicate with the HMI touch panel to allow for it to interpret and display the information provided.


How a PLR works
The main advantages of using an HMI touch panel device are: high quality visuals of machine/production processes, improvements in communication amongst equipment in a production line, mainstreaming industrial systems by using an HMI in the place of using push buttons, LED lights, selectors, etc., and detection of system/equipment malfunctions through indicators and alarms present in HMI device programming.

Overall, the main goal in using an HMI touch panel device is to create a user interface that allows for efficient and user-friendly control of devices or production lines to provide optimal outputs in an automotive or industrial setting.

IMO Connections
Plug in Power
PLUG IN POWER TERMINAL
  • Allows for easy installation into enclosure
Ethernet
ETHERNET PORT
  • Allows for remote connectivity for programming, control, and monitoring
High Speed Port
HIGH-SPEED SERIAL PORTS
  • Two COM ports in a single DB9 connector
  • RS232, RS422, and RS485 are all supported
USB Ports
2 USB PORTS
  • USB Type A for peripherals such as mice, keyboards, and barcode scanners.
  • USB Type B for HMI programming.
5 ping Terminal
5-PIN HIGH-SPEED SERIAL TERMINAL
  • Screwless plug in port for easy wiring and installation
  • Supports RS485 or RS232
MicroSD
MicroSD SLOT
  • Allows for expansion of storage space up to an additional 16GB.
  • Easily remove card for reprogramming or to transfer data logs.
Supported Protocols
Over 380 supported PLCs and Controllers from a wide range of manufacturers
  • Supports top manufacturers such as:
    • Allen Bradley/Rockwell Automation, GE Corporation, Honeywell, Idec Corporation, Mitsubishi Electric Corporation, Omron Corporation, Panasonic Corporation, and Siemens AG
  • Full list of drivers can be found here:
    http://factorymation.info/opint/iView_Protocol_List.pdf

Connections
Programming Connections
  1. Program using a direct link between HMI and PC using USB or Ethernet
  2. Program remotely using a link between the HMI and PC using Ethernet and a network switch
  3. Copy program from USB drive or MicroSD card to the panel directly. No need for a PC

Direct Communication
Using iView in Direct Communication
  • Directly connect the iView to a PLC or other controller for quick and easy process control

Gateway Device
Using iView as a Gateway Device
  • Connect a single iView to multiple different devices from different manufacturers and use as a protocol gateway
  • This can be especially useful to allow a PC to communicate with devices not ordinarily capable of doing so

Communication Utilities
Communication Utilities using built-in web server (VNC) and FTP
  • See exactly what the touch panel is currently displaying and interact with it as if you were standing there. Works with almost any networked device using a VNC viewer
  • Download a free VNC app here:
    https://www.realvnc.com/download/vnc/
IMO HMI Software
Software
iView Deleveloper - Free Programming Software
  • The iView Developer is a powerful and easy to use program that features a drag and drop interface to quickly get your application off the ground.
  • Run simulations without the need for a panel to be connected.
  • No license fee, no registration, no expiration. iView Developer is free and yours to keep. Download and install the full version to try it for yourself before purchasing a panel.
Use Product Key Below to Register Software:
Key
CT28-R6XR-GM7Y-R6F9-RKKM-WFGX

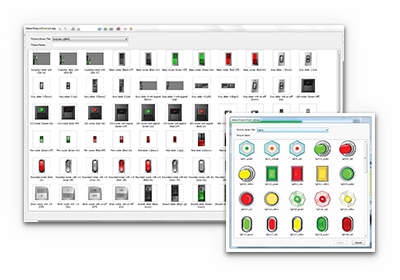

Objects and Images
Objects and Images
  • Thousands of built-in, high quality, scalable graphics
    • Simply drag and drop your graphic where you want it then resize it as you see fit. A convenient grid is provided for ease of alignment and sizing.
  • Fully customizable meters, buttons, graphs and more
    • Change color schemes, set transparencies, display or hide scales, set visibility based on system events, and more
  • Use animation paths to have objects move on screen to illustrate product movement through the factory.

Use Your Own
Wide open design options.
Don’t like what’s built-in? Use your own!
  • Import your own images for unlimited possibilities
  • Use any font installed on your PC for nearly countless options in type

Offline Simulation
Offline Simulation
  • Develop a program and simulate it without connecting to a panel
    • iView developer doesn’t require a panel to be connected in order to simulate an application. Since our software is free to download you can test your application before purchasing a panel!
  • Detailed compilation log to help you find errors in your application
    • Nothing is more frustrating than having your application fail to compile. iView developer however makes it easier to find those errors by giving you detailed descriptions in the compilation log. Screen number, X-Y position, and reason for failure are provided for each error so you can easily track them down
  • Simulation behaves exactly like the real thing.
    • Change operators, input values, and navigate screens using a clickable interface
    • Fully test your application before putting it to work in the field
    • Use the online simulation mode to test for errors in connections to devices

Remote Programming
Remote Programming
  • Alter HMI programming using USB, MicroSD, or FTP file transfer
    • Storing the program file on a USB disk or SD card allows you to update the panel application without needing a computer
    • You can also copy the existing program from one iView to another
  • Upload/Download an HMI program remotely with a network connection
    • By using the Ethernet connection on the iView you can upload or download an application to the panel from a remote location

Passwords
Password Protection
  • Secure panels from unwanted changes to designs, macros, and upload/download operations using passwords
  • Password levels can be assigned to any input object to prevent unauthorized users from making changes
    • There are 9 password levels that can be assigned to objects including one developer password. You can also assign a username to them to track changes made
    • A user with a higher level automatically has access to all the functions of the levels below
  • Log files of users and their associated actions can be created and stored for later review

Helpful Docs
Helpful Documentation
  • An extensive and comprehensive help file is available within the program and online
    • Images and diagrams combined with easy to follow instructions make learning the iView Developer a breeze
  • Also see our knowledge base for more information and tutorial videos explaining various features and functions of the iView software

MultiLang
Multi-language Support
  • Enables worldwide integration and operation
  • Choose from dozens of language character sets and switch between them on the fly

Recipe Funcs
Recipe Function
  • Make numerous changes to tags and values with the tap of a button
    • Recipes are preset blocks of data that allow for multiple products to be created using a single machine or production line. By changing recipes a user can quickly switch from, as an example, bagging 5 pounds of cake mix to bagging 3 pounds of biscuit mix
  • Enough storage for over 1 million individual recipes

Macros
Scripting and Macros
  • Create macros by easily writing your own scripts to achieve automatic changes
  • Macros can be nested within your code to modularize your functions for easy maintenance and future alteration
  • Macros can be triggered by a multitude of events ranging from when an object is pressed to after a certain amount of time has elapsed
  • No prior coding experience required! Detailed descriptions of each function are displayed in the function library
  • Combine Macros with the Event Processor to allow the HMI to make changes according to monitored conditions

Tagging
Tagging
  • Easily assign custom tags to parameters for easier programming
    • By assigning tags to registers you can name them for ease of use later when programming
    • In the software, a tag can have multiple names with same data type and settings which are called aliases

Portrait/Landscape
Portrait or Landscape Modes
  • The iView can be easily mounted horizontally or vertically. Simply choose your orientation in the application settings and iView Developer will automatically rotate the workspace to fit
