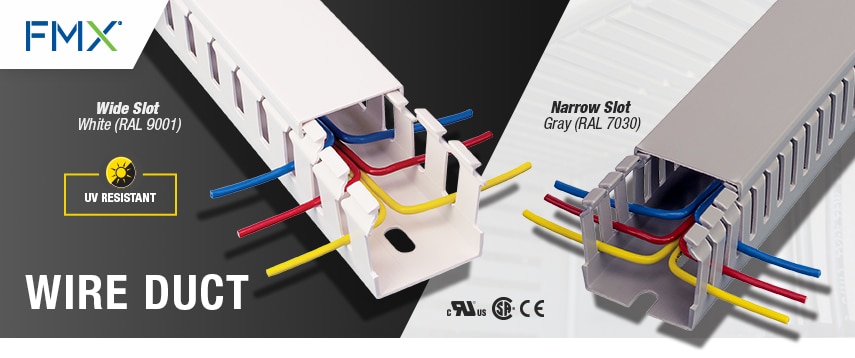

Wire Duct

Wire Duct
Wiring Duct provides installers with a means of organizing and protecting. Available with covers included, this duct greatly enhances the appearance of a control panel by keeping wires both grouped and concealed.
Industrial Grade Material
  • • UV-resistant Rigid PVC
  • • Self-extinguishing UL94 Flammability rating V-0
  • • Continuous Use Service temp: 5° to 140°F (-15° to 60°C)
  • • Glow-wire flammability index: up to 650°C
  • • IK07 Mechanical impact rating
  • • Insulation resistance > 100M Ω
  • • Dielectric Voltage > 3000V
  • • Colors: RAL 7030 Grey or RAL 9001 White
Base Slot Profile
  • • DIN 43659 bottom slot profile makes installation and mounting easy
Score Line
  • • Two score lines for partial or complete duct wall removal
Fully Rounded Slot Profiles
  • • Smooth edges safe for the installer and the installed cables
Cable Retention
  • • Cable retention profile keeps cables in place during installation and keeps pressure away from duct cover during the transport of cabled electrical control panels
  • • Extra cable retaining profile for 80mm and 100mm high duct
Cover IS Included
  • • Convenient cover profile allows for easy installation while preventing unwanted cover removal and displacement even when turned upside down or vertically
