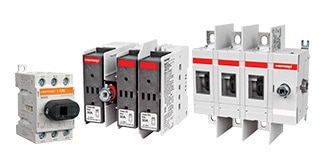

Electrical Disconnects, also known as disconnect switches or load break switches, ensure that an electrical circuit is completely de-energized. This allows operators to manually switch a circuit on or off for safe maintenance of equipment. The disconnects offered by FactoryMation are industrial grade and include options for feeder and branch circuits. Disconnect switch varieties include Load Break Switches, Enclosed Load Break Switches, Fusible and Non-Fusible Disconnects, and Solar DC Isolators for photovoltaic (PV) systems.

What are Disconnects?

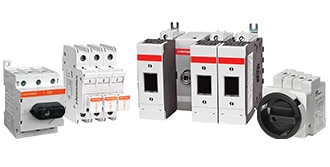

Disconnects are used to shut off the power to an electrical circuit for a variety of reasons ranging from emergency situations to maintenance requirements. These disconnects may be placed at the service entrance or somewhere down the line from the service entrance depending on the rating.

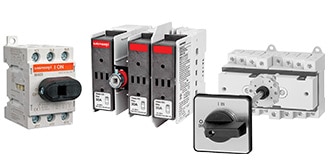

Where are Disconnects used?

Our Disconnects are industrial-grade devices that are primarily used in settings such as factories. Applications include:

• Main Incoming Power Line Disconnect (UL98)
• Solar Power System Disconnects (UL508i)
• Individual Motor Disconnects (UL508)

Who uses Disconnects?

Due to electrical code mandates and the general-purpose nature of electrical Disconnects, they see widespread use across many industries. Some examples include:

• Industrial Control
• Solar
• Utilities
• Heating and Air
• Building Control

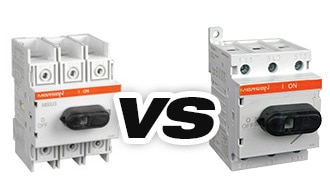

UL98 vs UL508

UL98 disconnects are designed and rated for primary circuit disconnect and protection such as for motor control centers and incoming power on control systems. UL98 disconnects can also be required for branch circuit and feeder circuit disconnect and protection down from the primary circuit disconnect. UL508 devices are intended for supplemental disconnect downstream from another properly rated circuit protector such as a UL98 disconnect or a UL489 MCCB. They are used as supplemental circuit disconnects for industrial control equipment or as manual motor disconnects when they are clearly marked as such.

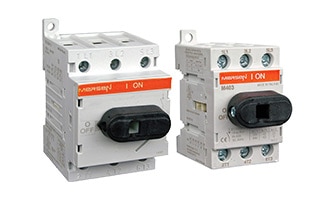

Load Break Switches

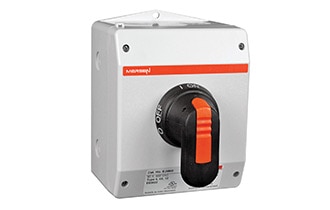

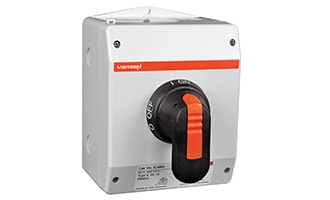

All our load break switches are padlockable. In addition, we offer Enclosed switches which provide protection for both the device and for personnel. We stock some of the most compact industrial-grade switches available, with features such as:

• Different mounting options including DIN-rail, surface, or door mounting
• Finger-safe box terminals
• Making or breaking loads up to 600V
• Enclosed models with triple padlocking

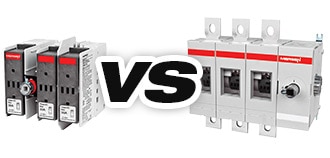

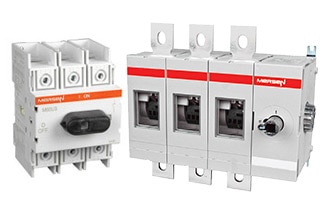

Fusible Disconnects vs Non-Fusible Disconnects

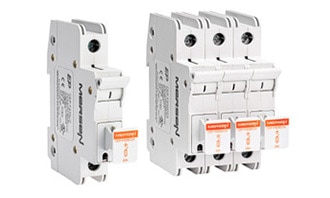

Fusible and Non-fusible disconnects both range from 30 to 1200 amps and feature double breaking. Fusible disconnects include an SCCR up to 200kA. Non-fusible disconnects SCCR is up to 100kA at 480V with the appropriate Class J fuses.

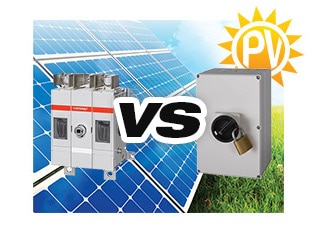

Solar DC Isolators vs PV-Rated Disconnects

Solar DC isolators are intended for use in solar power systems and are utilized to disconnect and to isolate DC panel loads in solar applications. They are available up to 55 Amps and with one to four strings. Lockable handle models are also available.

Photovoltaic (PV) Disconnects are also designed for use in solar applications. However, their ratings make them ideal for use in larger string combiner box level applications at 1000V or 1500V DC where large amounts of solar panels are installed.

Current Rating (Amps)

To properly size your disconnect, calculate the maximum load of the line and ensure that the disconnect meets or exceeds this calculation.
