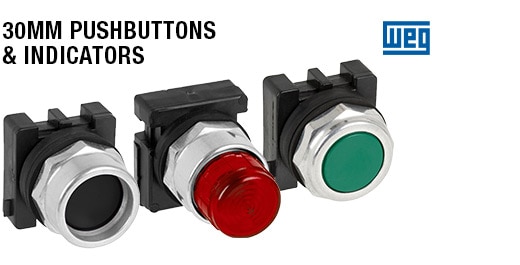

WEG 30mm Pushbuttons & Indicators

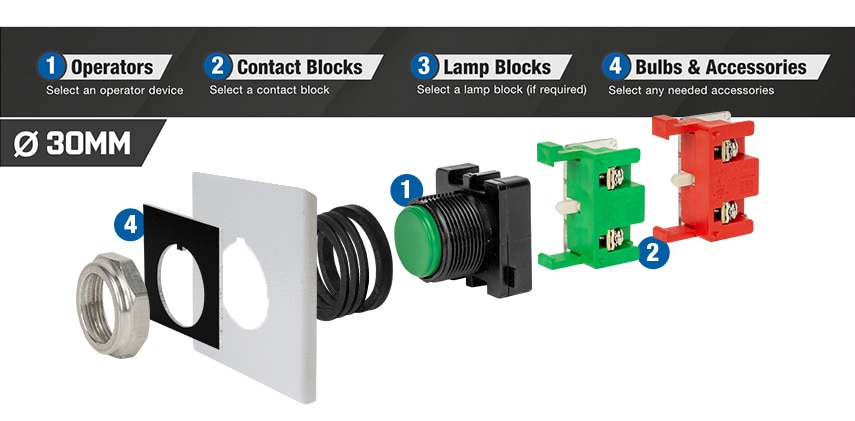

WEG’s CSW Series Pilot Devices are sold as individual components that allow for many combinations to best fit a given application. These components are developed for harsh environments and industrial applications.
Product Features
- UL Type 4, IP65 Rated

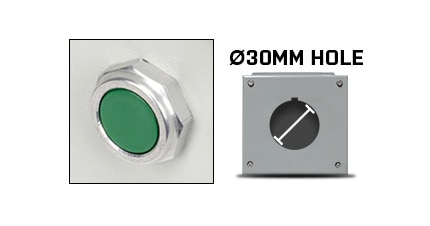

- Fits 1-13/64 (30.5mm) hole (no notch required)
- Contact blocks snap-in
- Up to 8 contact blocks per operator (non-illuminated operators)
- Illuminated devices use mini bayonet-base lamps
- LED lamps have leakage protection

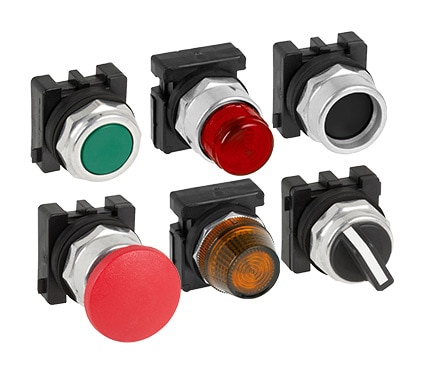

CSW Series includes 6 Operator Types:
- Extended
- Recessed
- Momentary Mushrooms
- Pilot Lights
- Selector Switches

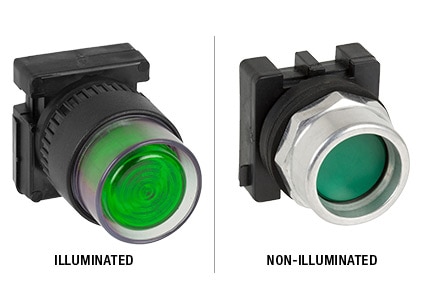

Illuminated and Non-Illuminated
Some pilot device categories include the option of illuminated models. These models replace one contact block with a lamp block (sold separately).
Available illuminated options:
- Extended Pushbuttons
- Momentary Mushrooms
- Illuminated Switches

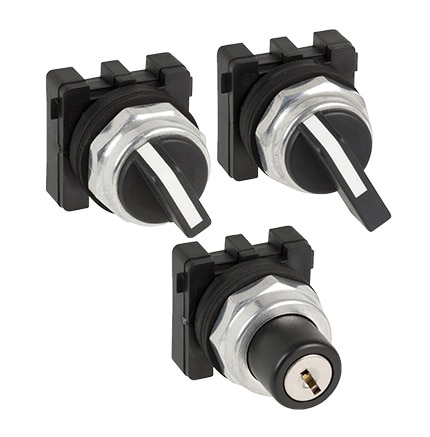

Selector Switch Varieties
Switches are available in illuminated and non-illuminated varieties. Illuminated switches are only available as Knob Switches. Non-illuminated Selector Switches include the additional option of switch form types.
Available selector switch options:
- Knob Selector Switches
- Lever Selector Switches
- Keyed Selector Switches
