Wiring Solutions

Wiring Solutions

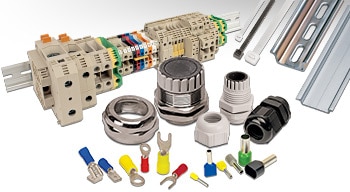

Different Wiring Solutions support the wiring of a panel in three different ways: wire management, fastening, and termination. Wiring solutions include power distribution blocks, terminal blocks, wire duct, and more.
Wire Duct

Wire DuctWire Duct
DIN-rail and Accessories

DIN-rail and AccessoriesDIN-rail and Accessories
Terminal Blocks

Terminal BlocksTerminal Blocks
Power Distribution Blocks

Power Distribution BlocksPower Distribution Blocks
Mechanical Lugs

Mechanical LugsMechanical Lugs
Compression Lugs

Compression LugsCompression Lugs
Wire Terminals

Wire TerminalsWire Terminals
Cable Ties

Cable TiesCable Ties
Cord Grips

Cord GripsCord Grips
Flexible Liquid-tight Tubing

Flexible Liquid-tight TubingFlexible Liquid-tight Tubing
Spiral Wrap

Sprial WrapSpiral Wrap


Our selection of wiring solutions spans a wide variety of options designed to make wiring easier and more organized.




Wire Duct
  • • Industrial-grade material
  • • UV-resistant rigid PVC with UL94 flammability rating
  • • Narrow and wide slot options
  • • Score lines for partial or complete duct wall removal
  • • Cover included

DIN Rail and Accessories
  • • Aluminum, electrogalvanized steel, and stainless-steel options
  • • Slotted and solid options
  • • Miniature DIN rail available
  • • RoHS compliant

Terminal Blocks
  • • Captive screws
  • • Finger-safe design
  • • Slim design to increase wiring space
  • • Screw clamps resist loosening
  • • Screw type and Push-In type options

Power Distribution Blocks
  • • 1 and multi-pole options
  • • 85 to 1060A
  • • IP20 Finger-safe models feature modular design

Mechanical Lugs
  • • High-strength 6061-T6 aluminum alloy
  • • Electro-tin plated
  • • Rated up to 35V at 194°F (90°C)
  • • Chamfered wire entry provides ease of installation

Compression Lugs
  • • High-strength seamless copper
  • • Color coded
  • • Electro-tin plated
  • • Rated up to 35V at 194°F (90°C)
  • • Chamfered wire entry provides ease of installation

Wire Terminals
  • • Fork Terminals, Push-On Quick Disconnect, Ring Terminals, and Wire
  • • Ferrules Available
  • • Standard and DIN 46228/4 color group options
  • • 2 to 22 AWG
  • • Easy-entry system for quick cable insertion
  • • Easy installation with FMX crimping tool

Cable Ties
  • • UL 94V-2 flame resistance
  • • Corrosion resistant
  • • Easy installation
  • • UV-resistant black option available
  • • 1 ½” to 47” options

Cord Grips
  • • NPT, Metric, and PG thread options
  • • 0.08” to 1.29” wire range
  • • Metal and Nylon options

Flexible Liquid-tight Tubing
  • • Conduit and Fittings available
  • • Shock resistant technopolymer on PVC base material
  • • UV resistant
  • • Self-extinguishing UL94 V-0 flammability
  • • Compression resistant: 320N
  • • 23 to 140°F (-5 to 60°C) operating temperature

Spiral Wrap
  • • 1/8” to ½” O.D.
  • • 1/16 – 4” wire range
  • • Black, natural, and white color options
  • • Polyethylene material
  • • Self-extinguishing or translucent options

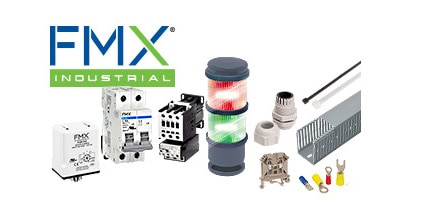

FMX
When you see the FMX brand on a product it means you can be assured of high quality and competitive pricing. Most FMX products are produced in the same factories and on the same production lines as many well-known major name brands offered in the market today. All of these products meet or exceed the expected quality and certification requirements for many industrial applications and undergo stringent testing to ensure they will perform according to standards in the field.

FMX Circuit Protection Products Include:
  • Wire Duct
  • DIN Rail
  • Terminal Blocks
  • Wire Terminals
  • Cable Ties
  • Cord Grips
  • Flexible Liquid-tight Tubing
  • Spiral Wrap

More about FMX

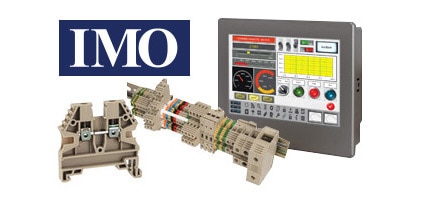

IMO
IMO’s focus is on targeting the needs of applications in such a way as to improve efficiency in industrial processes. Their products are manufactured in quality-assured manufacturing sites in order to continue to be recognized for quality and reliability throughout the world. Every product line is designed to carry these values forward so that customers can be assured in the knowledge that they are making a no-compromise selection.

IMO Products Include:
  • Terminal Blocks

More about IMO

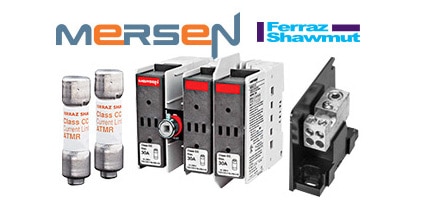

Mersen
For over 125 years, Mersen has been a leading player in the electrical power industry. They demonstrate global success in electrical power including product lines such as their power distribution blocks.

Mersen Circuit Protection Products Include:
  • Power Distribution Blocks

More about Mersen
