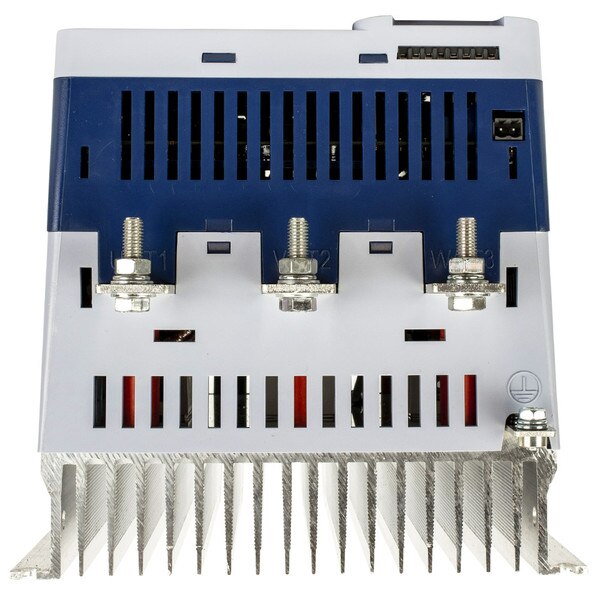

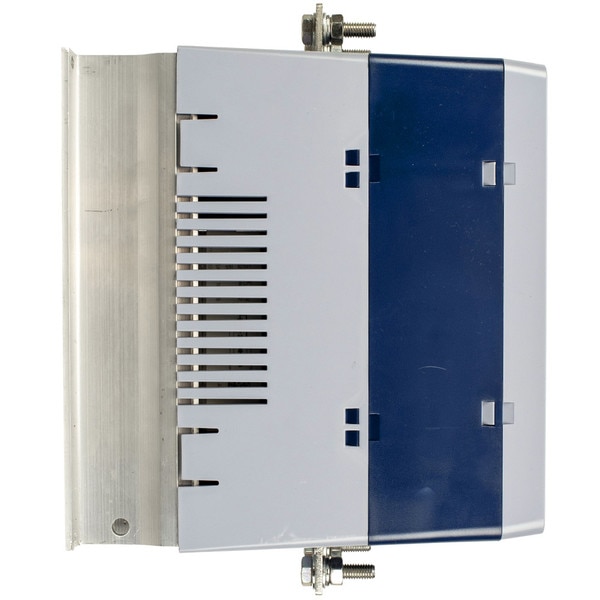

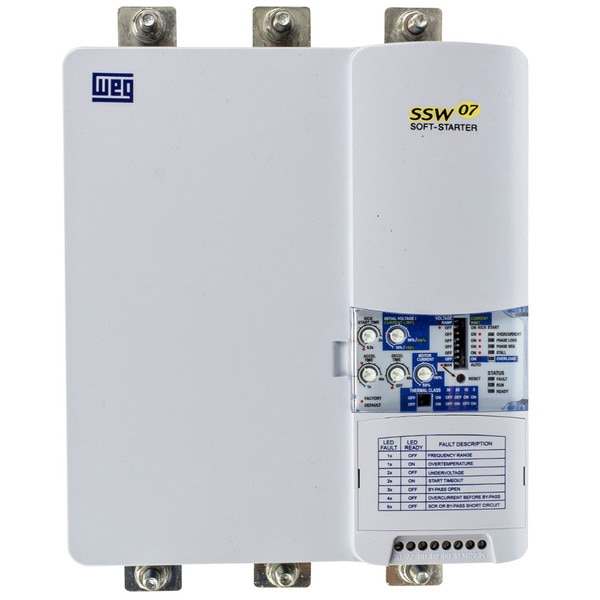

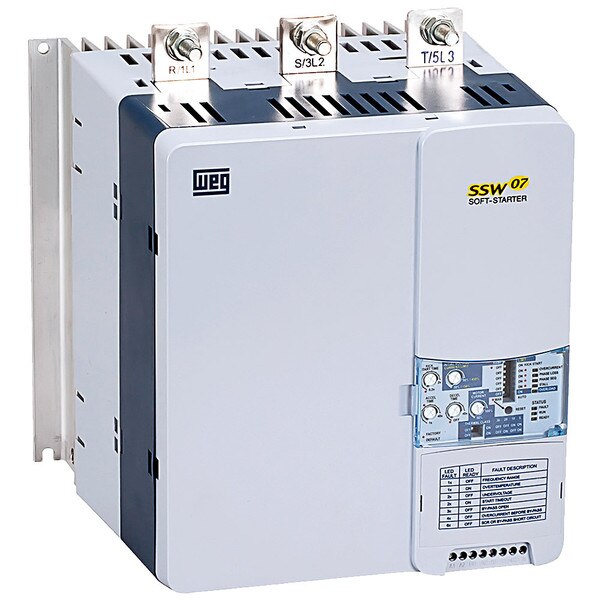

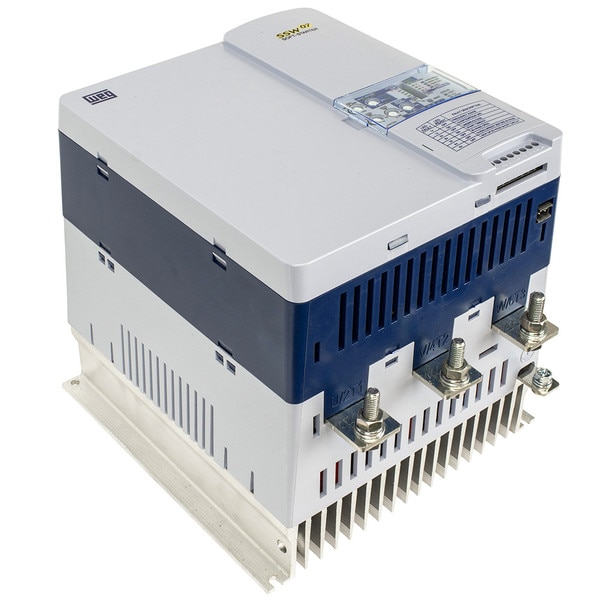

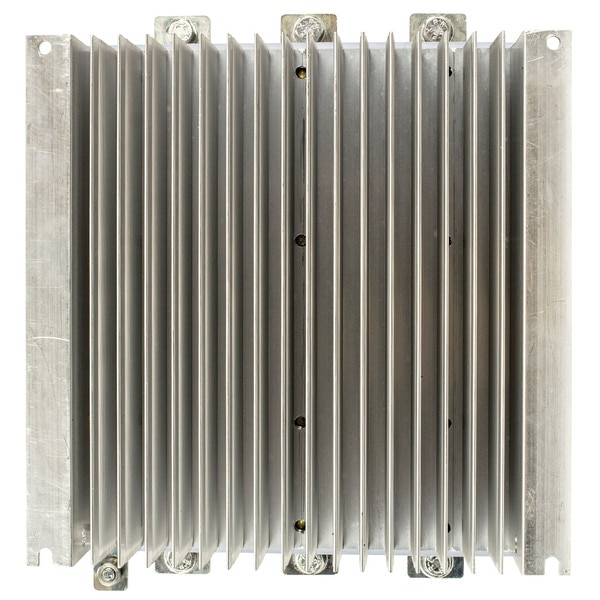

SSW070130T5SZ, Soft Starter, 3 PH, 130A

WEG Electric SSW07 Soft Starter, 3 PH, 130A (50HP/230V, 100HP/460V, 125HP/575V), 10.9"Hx8.6"Wx8.66"D, open-chassis

Item: SSW070130T5SZ

(0) No Reviews yet

Weight: 16.8 lbs.

Made in: Brazil

$1,867.95

In Stock

SKU:SSW070130T5SZ

Back

Specifications

WEG Electric SSW07 Soft Starter, 3 PH, 130A (50HP/230V, 100HP/460V, 125HP/575V), 10.9"Hx8.6"Wx8.66"D, open-chassis

Universal voltage (220 to 575 VAC)
Protected Chassis Enclosure
Significant reduction of mechanical stresses on coupling and transmission devices (gearboxes, pulleys, gears, conveyors, etc.) during start
Avoids the “water hammer” in pumps
Easy operation, setup, maintenance and installation
Operates in environments up to 55ºC (with no derating)
Integrated electronic motor protection
Built-in electronic thermal relay

UL HP Ratings

220 / 230VAC 3-Phase	50HP
440 / 460VAC 3-Phase	100HP
575VAC 3-Phase	125HP

General Specifications

Power Source Voltage	220 to 575VAC
Power Source Frequency	50 to 60Hz (±10%) or 45 to 66Hz
Control Voltage	110 to 240VAC (-15% to +10%) 94 to 264VAC
Nominal Current	130
Dimensions	10.9" H x 8.6" W x 8.66" D
Enclosure	Injected Plastic: IP00
Control	Control Method: Voltage Variation over the load (three phase induction) CPU: DSP type microcontroller (Digital Signal Processor) Types of Control: Voltage Ramp, Current Limitation
Starting Cycle	Normal: 300% (3 x Inom.) during 30s, 10 starts per hour (every 6 minutes)
Inputs	Digital: 3 Isolated Programmable Inputs
Outputs	Relay: 2 Relays with Normally Open Contacts, 240VAC, 1A, Programmable Function
Communication (Serial)	RS-232
Safety	Protections (standard): Overcurrent - Locked Rotor Overcurrent Before By-pass: Excess Starting Time Phase Loss - Frequency Outside Tolerance Inverted Phase Sequence: By-Pass Contact Open Overtemperature in Power Heatsink: Under voltage in Control Supply Motor Overload (Class 5 to 30) Protections (with Accessory): Undercurrent: Programming Error Current Imbalance: Serial Communication Error Subcurrent Before By-Pass: MMI Communication Error External Defects: Overtemperature in Motor PTC

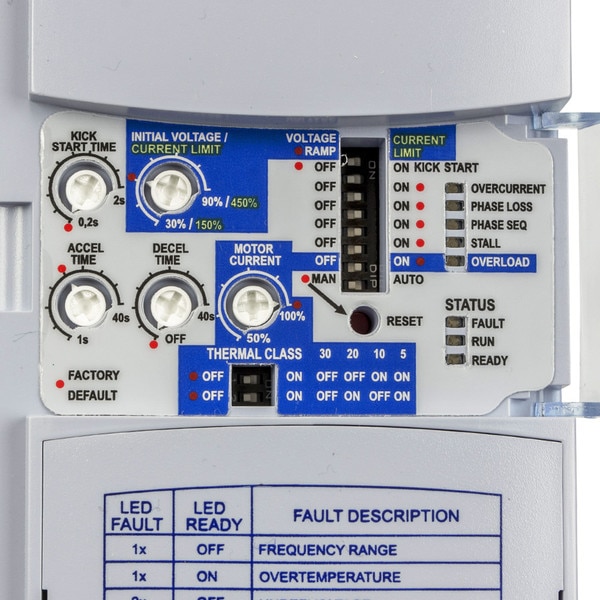

Standard Features	Voltage Ramp (Initial Voltage : 30 % to 90%) Current Limitation (150% to 450% of SSW-07 Rated Current) Starting Time ( 1 to 40 seconds) Kick Start (Off- 02. to 2 seconds) Deceleration Ramp (0 to 40 seconds) Motor and SSW-07 Current Relation (50% to 100%) Faults Auto-Reset Thermal Memory Auto-Reset Factory Standard Reset Soft-Starter Built-in By-Pass
Programming Accessory (MMI or Serial Communication)	Command: On, Off/Reset and Parameterization (Function Programming) Additional Functions /Resources: Starting Time up to 240 seconds Deceleration Time Up to 240 seconds Program Enabling Password Selection for Local / Remote Operation COPY Function (SSW-07 to MMI and MMI to SSW-07) Programmable Rated Voltage Supervision (Reading): Motor Current (%Soft-Start In) Motor Current (% Motor In) Motor (A) Current Indication in each phase R-S-T Supply Network Frequency Apparent Power Supplied to Load (kVA) Soft-Starter Status Back-up of the 4 Last Errors Soft-Starter Software Version Motor Thermal Protection Status
Accessories and Options	Plug-in Type Local MMI MMI Remote Kit 1,2,3,5,7.5 and 10m for Remote MMI Interconnection RS-232 Communication Kit SSW-07 Interconnection Cables > PC Serial (RS-232) 3 and 10m RS-485 Communication Kit Motor PTC Kit Ventilation Kit for Size 2 (45 to 85A) IP20 Kit for Size 3 (130 to 200A)
Finishing: Color	Lid: Gray Ultra Mat Cabinet: Blue Ultra Mat
Ambient Temperature	32° to 131°F (0° to 50°C) Standard Operation at Rated Current
Humidity	0 to 90%, Non-Condensing
Altitude	0 to 1000m (3,300 Feet) Standard Operation at Rated Current
Standards	UL 508 Standard - Industrial Control Equipment, File # E198842
