Ensto Pushbutton

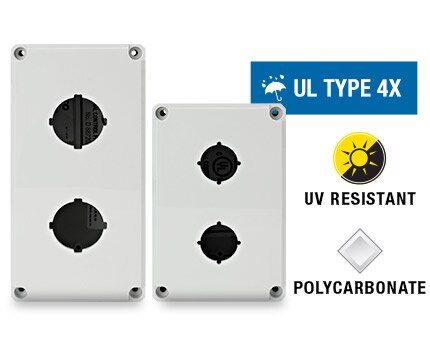

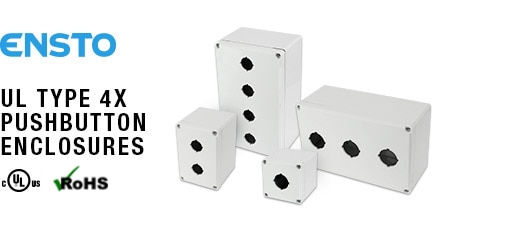

ENSTO UL Type 4X Polycarbonate Pushbutton Enclosures are designed with excellent resistance to UV exposure and are proven to withstand arctic and changing climates
Features
- Polycarbonate construction
- UL Type 4, 4X, 6, 13, IP66 and IP67 protection ratings
- Poured gasket with tongue-and-groove closure
- UL 746C flammability rating within 5” flame
- Operating Temperature: -40° to 176°F (-40° to 80°C)
| Screw Cover
Contemporary design with faceted corners and cover plugs included. |
22mm & 30mm Hole Sizes
Compatible with 22mm and 30mm pushbuttons and legend plates. |
|
|
| Screw Cover
Contemporary design with faceted corners and cover plugs included.
|
| 22mm & 30mm Hole Sizes
Compatible with 22mm and 30mm pushbuttons and legend plates.
|
| TECHNICAL INFORMATION | |
|---|---|
| UL File# | E189312 |
| UL Category | NITW, NITW7 |
| Environmental Ratings | 4, 4X, 6, 12, 13 |
| Outdoor Suitability | UL 746C (f1) rated material |
| Operating Temperature | -40˚ to 176˚F (-40˚ to 80˚C) |
| Short Term Temperature Range | -40˚ to 248˚F (-40˚ to 120˚C) |
| Flammability Rating | UL 746C |
| Degree of Protection | IP66 and IP67 |
| Impact Resistance | IK08 (-13˚ to 95˚F (-25˚ to 35˚C)) |
| Insulation | Class II |
| Color | Grey RAL 7035 |
| MATERIALS | |
| Base/Cover | Polycarbonate |
| Cover Screws | Stainless Steel, AISI316 |
| Gasket | Hydrophobic PUR |
Dimensions

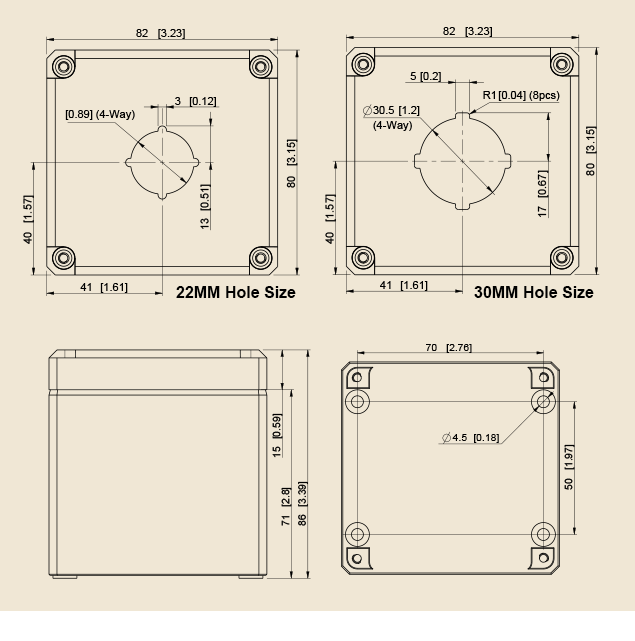

1 Hole Pushbutton Enclosures

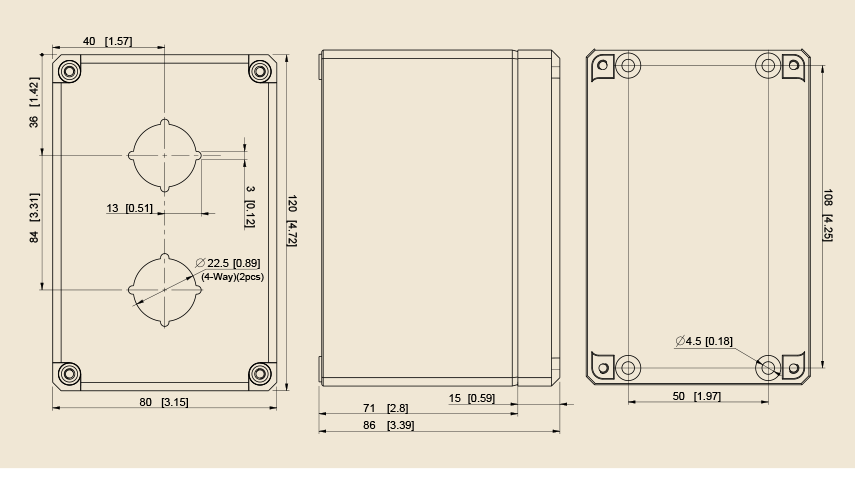

22mm - 2 Hole Pushbutton Enclosures

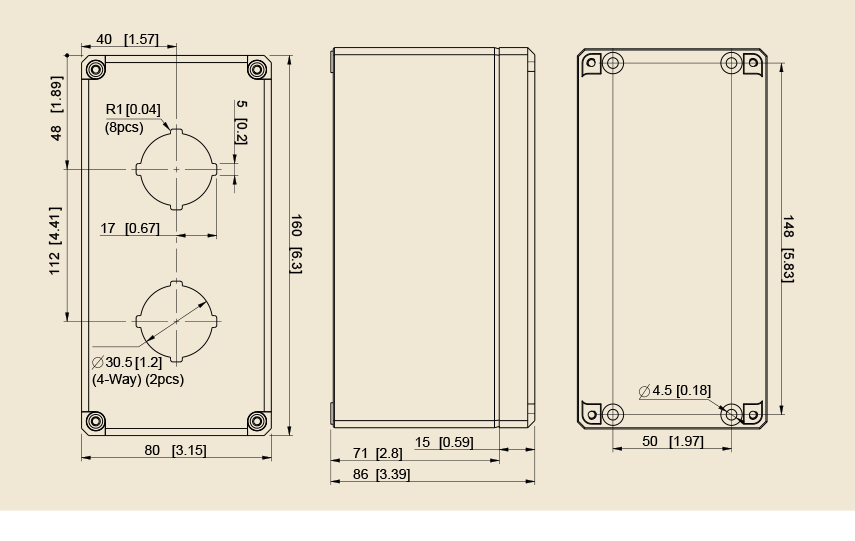

30mm - 2 Hole Pushbutton Enclosures

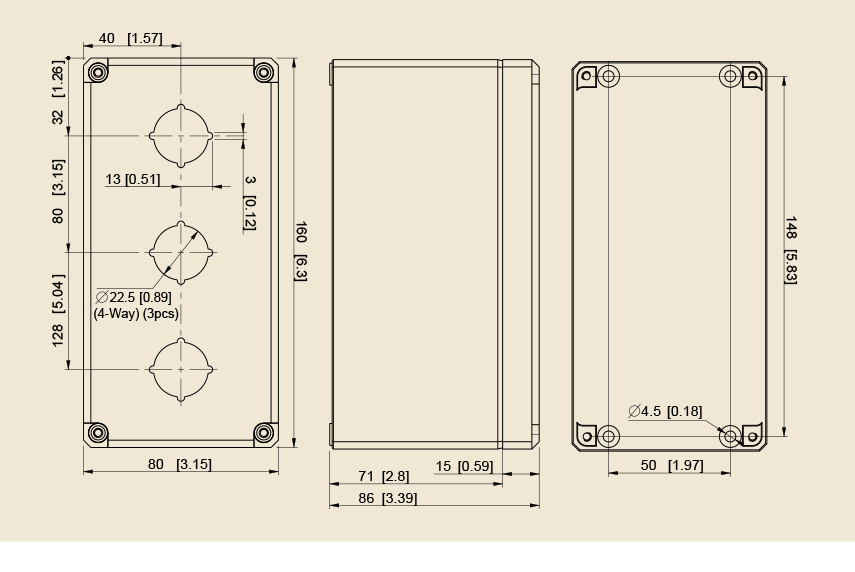

22mm - 3 Hole Pushbutton Enclosures

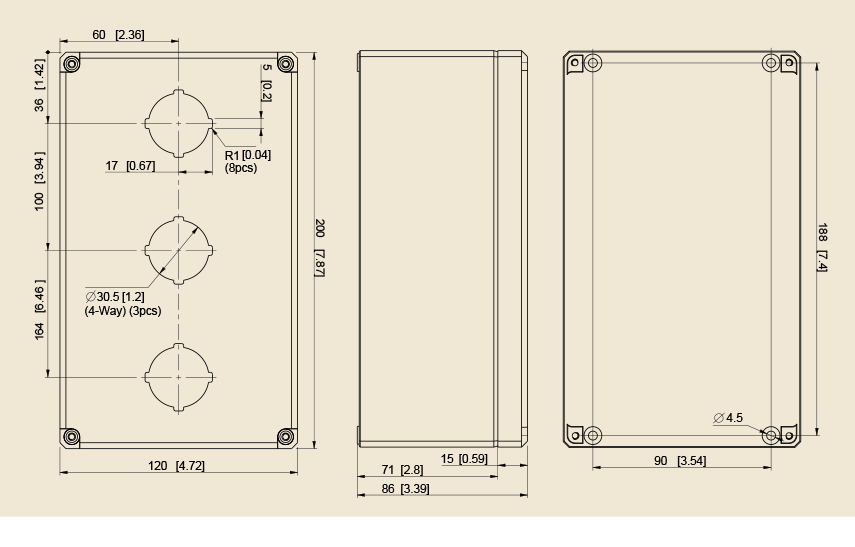

30mm - 3 Hole Pushbutton Enclosures

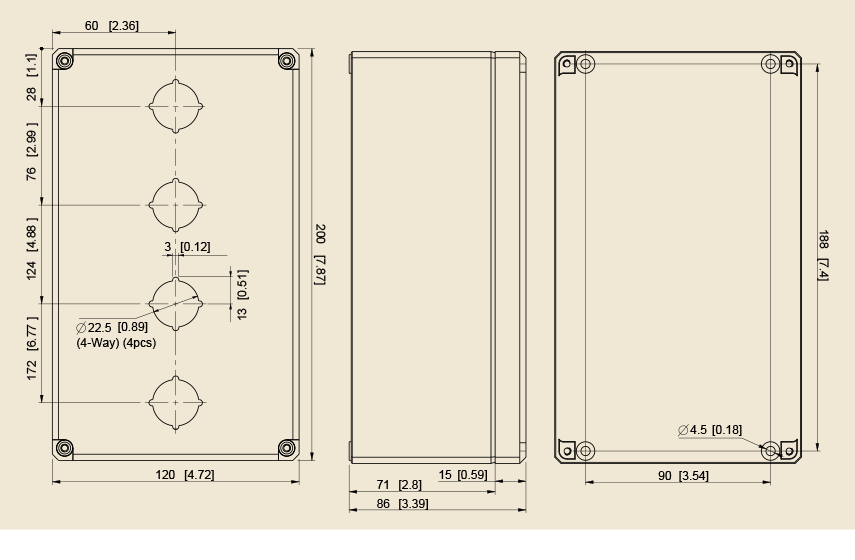

22mm - 4 Hole Pushbutton Enclosures

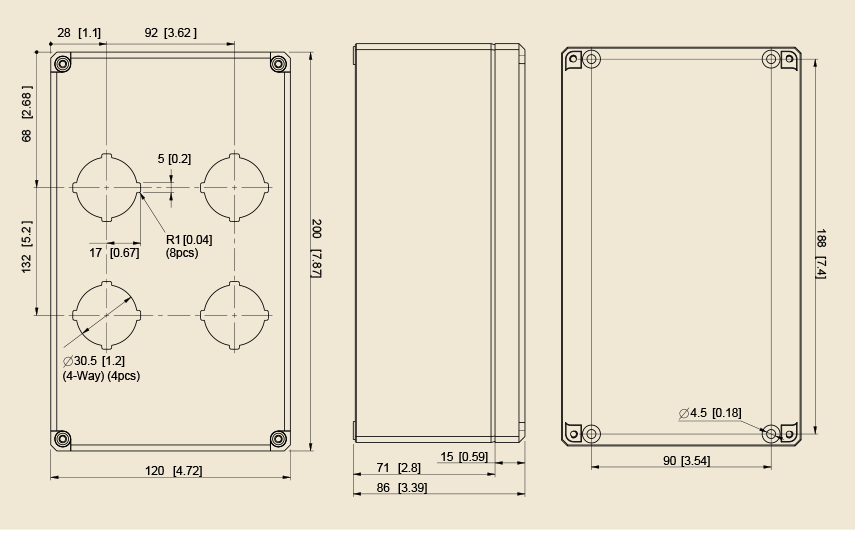

30mm - 4 Hole Pushbutton Enclosures
22mm - 2 Hole Pushbutton Enclosures
30mm - 2 Hole Pushbutton Enclosures
22mm - 3 Hole Pushbutton Enclosures
30mm - 3 Hole Pushbutton Enclosures
22mm - 4 Hole Pushbutton Enclosures
30mm - 4 Hole Pushbutton Enclosures
Item
Item Details
Price
QTY
Stock Status
Add To Cart
Ensto Pushbutton Enclosure, 1 hole - 22mm, 3.2H x 3.1W x 3.4D" (82 x 80 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$25.50
Ensto Pushbutton Enclosure, 1 hole - 30mm, 3.2H x 3.1W x 3.4D" (82 x 80 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$26.25
Ensto Pushbutton Enclosure, 2 hole - 22mm, 4.7H x 3.1W x 3.4D" (120 x 80 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$27.10
Ensto Pushbutton Enclosure, 3 hole - 22mm, 6.3H x 3.1W x 3.4D" (160 x 80 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$34.30
Ensto Pushbutton Enclosure, 2 hole - 30mm, 6.3H x 3.1W x 3.4D" (160 x 80 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$31.90
Ensto Pushbutton Enclosure, 4 hole - 22mm, 7.9H x 4.7W x 3.4D" (200 x 120 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$46.70
Ensto Pushbutton Enclosure, 3 hole - 30mm, 7.9H x 4.7W x 3.4D" (200 x 120 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$44.30
Ensto Pushbutton Enclosure, 4 hole - 30mm, 7.9H x 4.7W x 3.4D" (200 x 120 x 86mm), Screw Cover, Polycarbonate, IP66/67, UL Type (NEMA) 4, 4X, 6, 12, 13, UL746C F1 rating for UV and Flammability, Grey
$47.40
