Mechanical Lugs

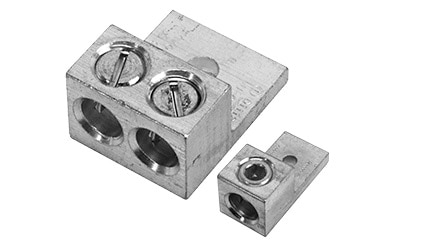

Mechanical Lugs are used to terminate electrical conductors and to connect electrical wires. This variety of lug nut allows wires to be removed using a tool so that the lug or wire can be replaced independently. Mechanical lugs are available in a variety of sizes.
Specifications
- High strength 6061-T6 aluminum alloy
- Electro-tin plated
- Rated up to 35kV at 90°C
- Suitable for use with either copper or aluminum conductors
- Easy installation via chamfered wire entry
- UL list and CSA certified
Two Series

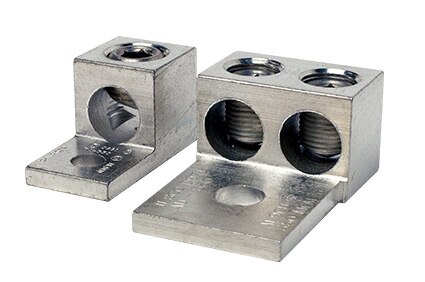

Our mechanical lugs are available in two series: TA or AU. The primary difference between each series is that the TA models have only a single barrel while AU lugs feature two barrels.
Our mechanical lugs are available in two series: TA or AU. The primary difference between each series is that the TA models have only a single barrel while AU lugs feature two barrels.
Mechanical Convenience

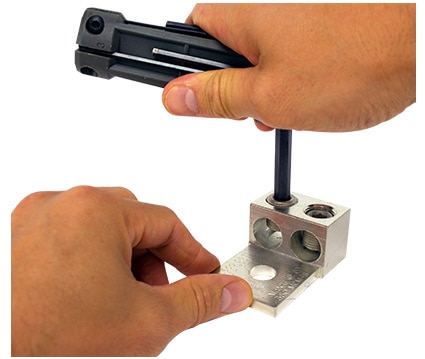

Mechanical lugs (sometimes called electrical lugs) offer one main advantage: maintenance convenience. Mechanical lugs allow wires to be removed by use of a tool. Being able to easily remove the wire means that the wire OR the lug can be easily replaced if necessary. Mechanical lugs are also able to accommodate larger cables.
Mechanical lugs (sometimes called electrical lugs) offer one main advantage: maintenance convenience. Mechanical lugs allow wires to be removed by use of a tool. Being able to easily remove the wire means that the wire OR the lug can be easily replaced if necessary. Mechanical lugs are also able to accommodate larger cables.
Corrosion Resistance
Electroplating uses electric currents running through a solution to coat the lug in another metal. In this case, the lugs are coated with tin via electroplating to provide corrosion resistance.
Electroplating uses electric currents running through a solution to coat the lug in another metal. In this case, the lugs are coated with tin via electroplating to provide corrosion resistance.
Application

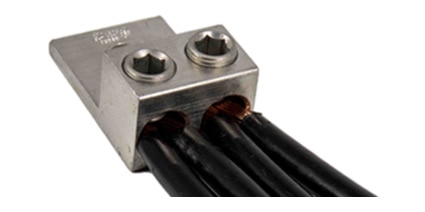

Lugs are used to terminate electrical conductors and form a connection between devices by joining wiring. They see widespread use due to their very general-purpose nature. Virtually every industry sees use for lugs in various applications.
Lugs are used to terminate electrical conductors and form a connection between devices by joining wiring. They see widespread use due to their very general-purpose nature. Virtually every industry sees use for lugs in various applications.
Item
Item Details
Price
QTY
Stock Status
Add To Cart
Ilsco Mechanical Lugs, 1 barrel, 6061-T6 aluminum alloy, Wire size: 250 kcmil to 6 AWG, Bolt size: 5/16, 5pk
$23.00
Ilsco Mechanical Lugs, 1 barrel, 6061-T6 aluminum alloy, Wire size: 250 kcmil to 6 AWG, Bolt size: 5/16, 25pk
$105.00
Ilsco Mechanical Lugs, 2 barrel, 6061-T6 aluminum alloy, Wire size: (2) 250 kcmil to 6 AWG, Bolt size: 3/8, 2pk
$23.30
Ilsco Mechanical Lugs, 2 barrel, 6061-T6 aluminum alloy, Wire size: (2) 250 kcmil to 6 AWG, Bolt size: 3/8, 6pk
$63.90
