IMC330-07S-10-DC24, Mini Contactor, 7A, 3 Pole, 1NO Aux, Coil: 24VDC

FMX Mini Contactor, Non-reversing, 7A, 3 Pole, 600V, Screw Clamp Terminals, Aux: 1NO, Coil: 24VDC
Item: IMC330-07S-10-DC24
(0) No Reviews yet
SKU: IMC330-07S-10-DC24
Orders up to 7PM ET Ship same day!
Weight: 0.4872216 lbs.
Made in: Brazil

Related Videos

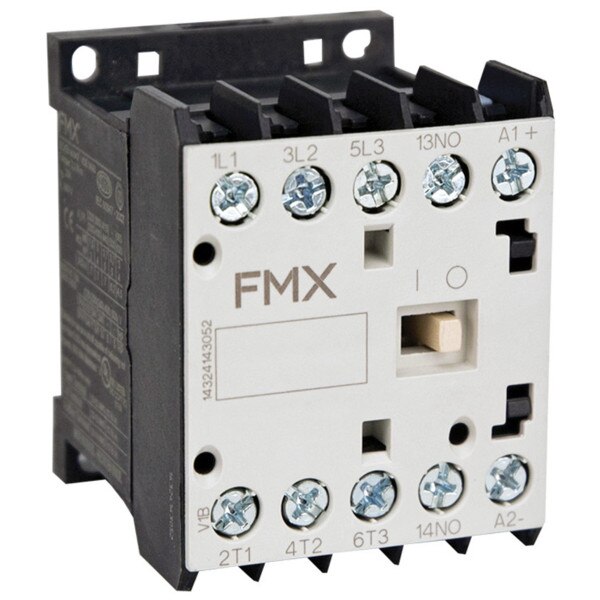

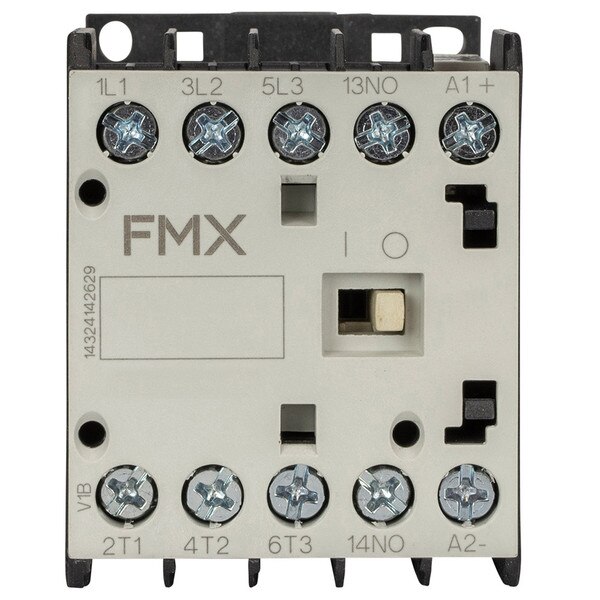

FMX Mini Contactor, Non-reversing, 7A, 3 Pole, 600V, Screw Clamp Terminals, Aux: 1NO, Coil: 24VDC
  • 1/3HP to 15HP

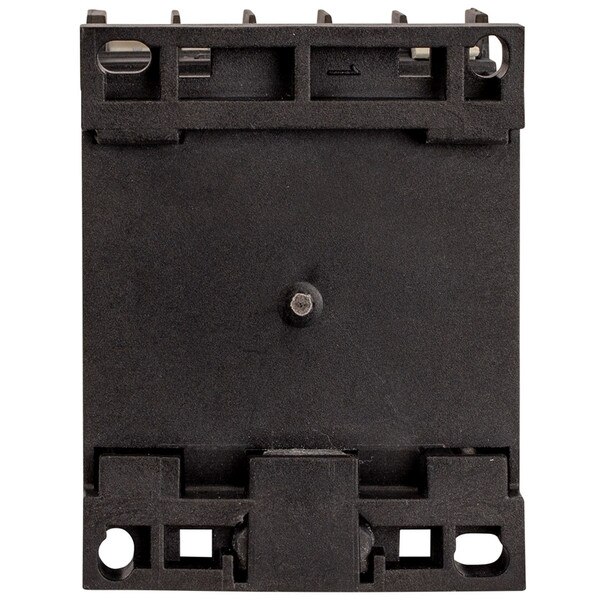

  • Surface or DIN-rail mountable
  • UL508 listed
  • 50/60Hz AC and DC coil versions available
  • Direct-mounting overloads
  • RoHS compliant
  • Auxiliary contacts standard (1 N.O.)
  • 1 year warranty

General Specifications

General Purpose Rating (A)18
Rated Operational Voltage (V)12 to 690
Rated Insulation Voltage (V)UL/CSA: 600, IEC/VDE 0660: 690
Rated Impulse Voltage IEC60947-1 (V)4000
Rated Operating Frequency (Hz)25 to 400
Degree of ProtectionIP20
Vibration Resistance (5 to 200Hz)
Contactor Open (g)2
Contactor Closed at Coil (g)4
Mechanical Endurance (Million ops)12
Electrical Endurance (Million ops)1.4
Shock Resistance (1/2 Sin Wave = 11ms)
Contactor Open (g)6
Contactor Closed at Coil (g)10
Terminal Capacity - Main Contacts (AWG)1 or 2 x (18 to 12)
Screw DriverPhillips #2
Tightening Torque (lb-in)10
Environmental Conditions
Ambient TemperatureStorage: -67 to 176°F (-55 to 80°C), Operating: -4 to 140°F (-20 to 60°C)
Climatic WithstandAccording to IEC 60680-2
Pollution Degree3
Mounting35mm DIN-rail Acc. DIN EN 50 022
Weight (lb)0.42

UL HP Ratings (AC3 Motor Load)

Single Phase
115V1/3HP (7.2A)
230V3/4HP (9A)
Three Phase
230V1-1/2HP (7A)
460V5HP (7A)
575V5HP (9A)
Optional Overload RelayIMOL-16S

Control Circuit Ratings

Standard Voltages12 to 660 (60Hz)
Coil Operating Limits
Monofrequency Coils (NO LOAD) (V)0.85 to 1.1
Pick-up (V) 0.40 to 0.70 (DC)
Drop-out (V)0.15 to 0.40 (DC)
Coil Consumption (Single coils)
Sealed (VA)2.5 to 3.5
Inrush (VA)35
Power Factor
Closed (Cos ɸ)0.28
Opened (Cos ɸ)0.85
Operating Time
Coil Energization - N.O. (ms) 10 to 20 (DC)
Coil De-energization - N.O. (ms) 2 to 8 (DC)
