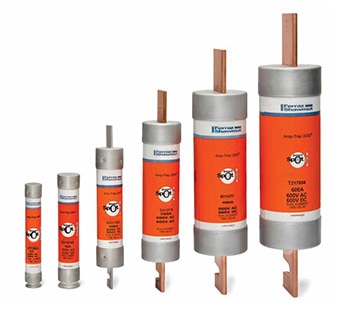

Specifications

• Time-delay for motor starting and transformer inrush currents without nuisance opening
• Volts: 250VAC/DC
• 200kA IR (AC), 100kA IR (DC)
• Solid state SmartSpot visual blown fuse indicator
• Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
• High-visibility orange label ensures instant recognition
• Reduced inventory by taking the place of Class RK5, K, and H fuses
• Fiberglass body provides dimensional stability in harsh industrial settings
• Easy 2-to-1 selectivity for prevention of nuisance shutdowns and “black outs”
• Reducer fuses available as permanent solution to decrease current rating without replacing fuse holders

Approvals

• UL listed to standard 248-12 File E2137
• DC listed to UL standard 248
• CSA certified to standard C22.2 No. 248.12

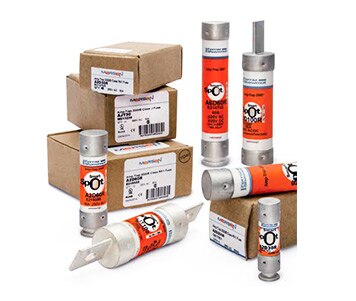

Reducer Fuses

• Reducer fuses are a permanent solution to decrease current rating
• Reduced amp ratings designed to fit into larger fuse holders
• Lower the amp rating of the system without replacing fuse holders or fuse panel
• Ratings available from 110 to 400 Amperes

Time delay fuses are the most useful fuses for motor branch circuit application. A time delay fuse can be sized closer to motor full load current, providing a degree of overload protection, better short circuit protection, and possible use of a smaller disconnect switch.

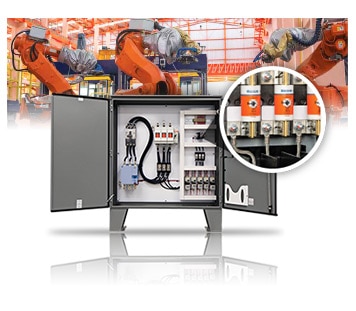

Some example applications include:

• Motors
• Safety Switches
• Transformers
• Branch Circuit Protection
• Disconnects
• Control Panels
• All General-Purpose Circuits
