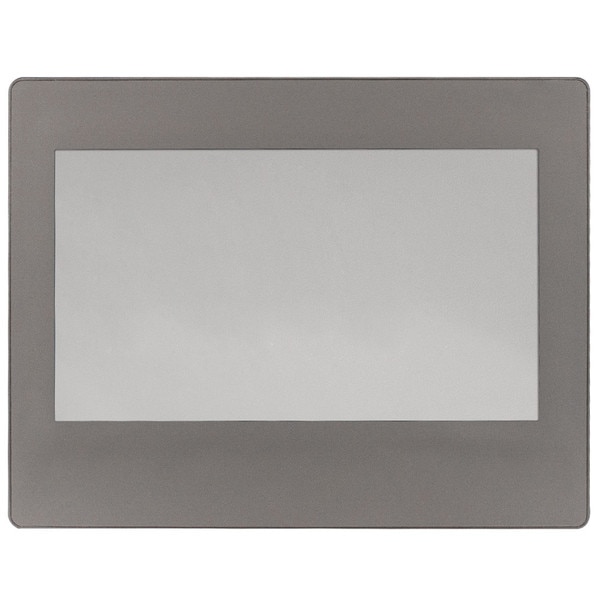

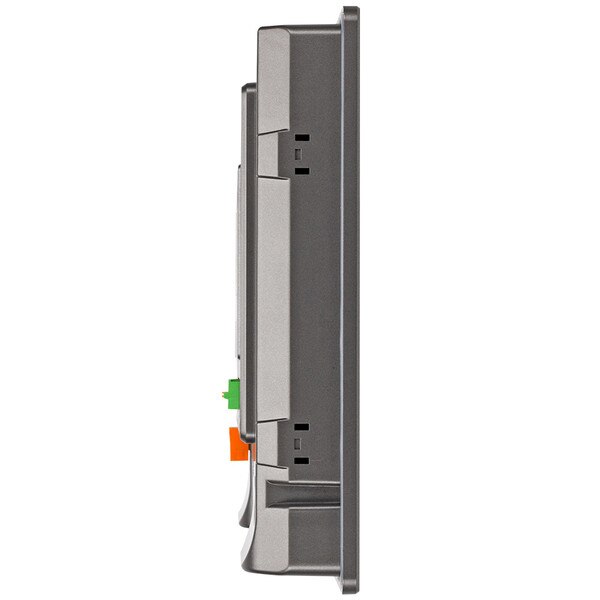

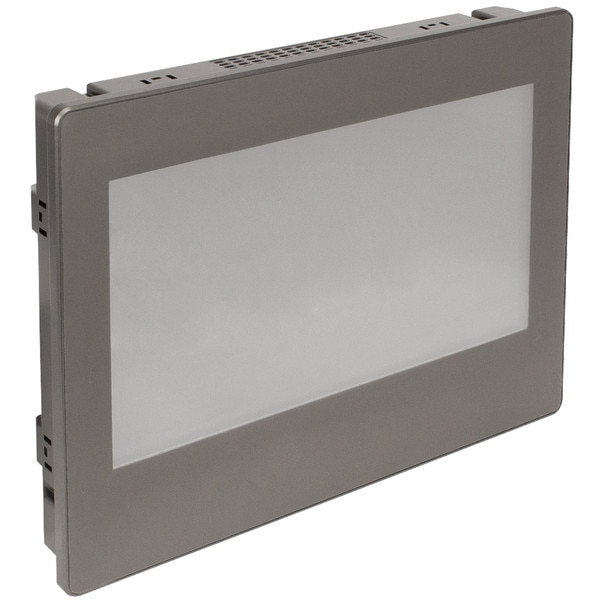

IV210M-SEAP, iView2 M-Series HMI Touch Screen, 10.4 inch, Built-in IIoT
iView2 M-Series HMI Touch Screen, 10.4 inch TFT LCD, 800x600, 65k colors, Built-in IIoT and VNC (WEB) server, Ports: (5) serial, (2) USB, and (1) Ethernet, Plastic Bezel
Weight: 3.89 lbs.Made in: Taiwan (Province of China)
IV210M-SEAP, iView2 M-Series HMI Touch Screen, 10.4 inch, Built-in IIoT
iView2 M-Series HMI Touch Screen, 10.4 inch TFT LCD, 800x600, 65k colors, Built-in IIoT and VNC (WEB) server, Ports: (5) serial, (2) USB, and (1) Ethernet, Plastic Bezel
Weight: 3.89 lbs.Made in: Taiwan (Province of China)
Specifications
iView2 M-Series HMI Touch Screen, 10.4 inch TFT LCD, 800x600, 65k colors, Built-in IIoT and VNC (WEB) server, Ports: (5) serial, (2) USB, and (1) Ethernet, Plastic Bezel

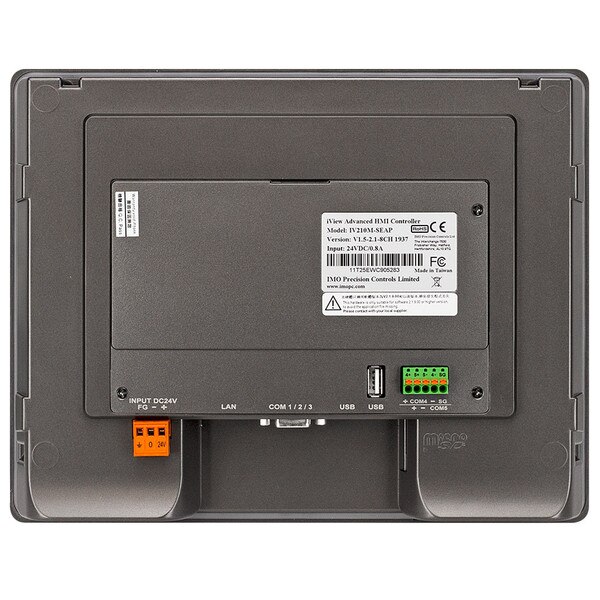

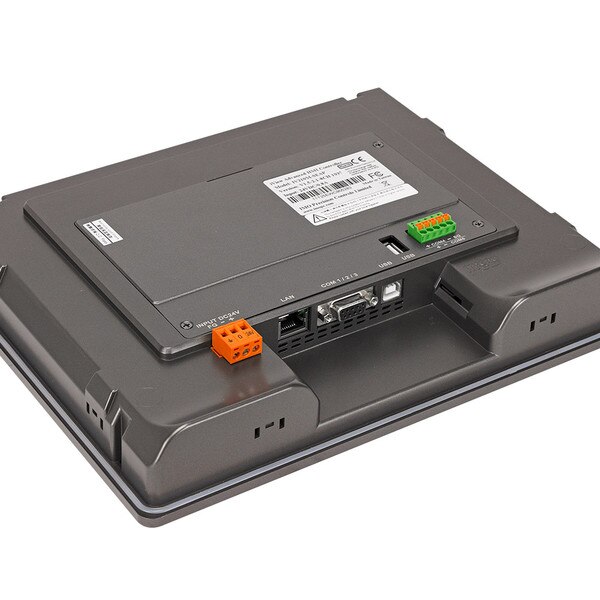

- Multiple communication ports for flexible connection options: one ethernet, five high-speed serial, and two USB
- Industrial Internet of Things (IIoT) with Inter-device Connection Service (IDCS)
- Support for Message Queuing Telemetry Support (MQTT), a fast and open publisher/subscriber based communication protocol
- Remotely Program/Monitor/Control with built-in web server (VNC)
- Upload and Transfer application and operation data with built-in FTP server
- Multiple data storage options: System storage memory can be expanded with use of USB port
- Send automated system and alarm messages via email
- Data/Operation/Alarm logging with user defined parameters and frequencies
- Rugged plastic bezel
- UV resistant IP66 environmental protection rating for harsh duty environments
General Specifications
| Input Power | 24VDC±10%, 20W (10W for 4.3" Models) |
| Display | 65k Color TFT Display |
| COM1 | RS 232 |
| COM2 | RS 422/485 (4.3" RS 485 Only) |
| COM3 | RS485 |
| COM4 | RS485 |
| COM5 | RS485 |
| USB | 1 USB Type A, 1 USB Type B |
| System Memory | 8MB |
| Storage Memory | 128MB |
| Battery-Backed Memory | 128KB |
| CPU Clock Speed | 300 MHz |
| Enclosure Type | IP66 |
| Operating Temperature Range | 14℉ to 140℉ (-10℃ to 60℃) |
| Agency Approvals | cUL, CE, UL, UL File# E197035 |
