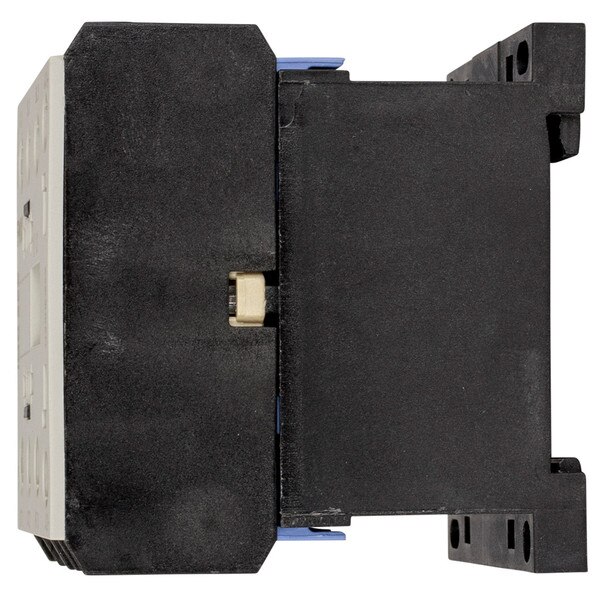

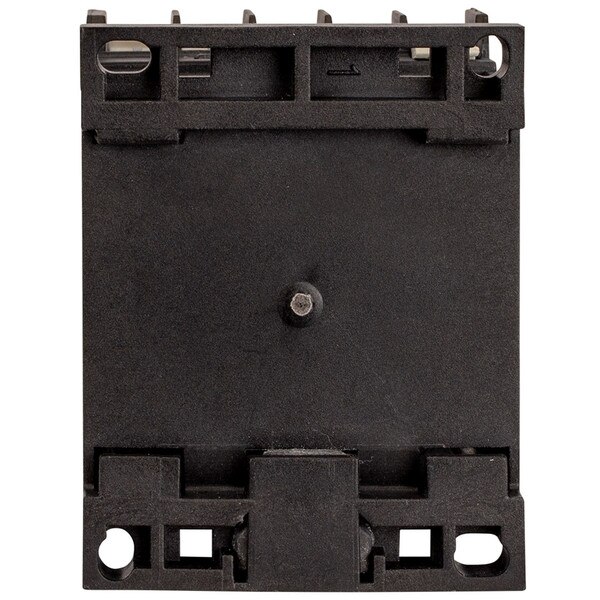

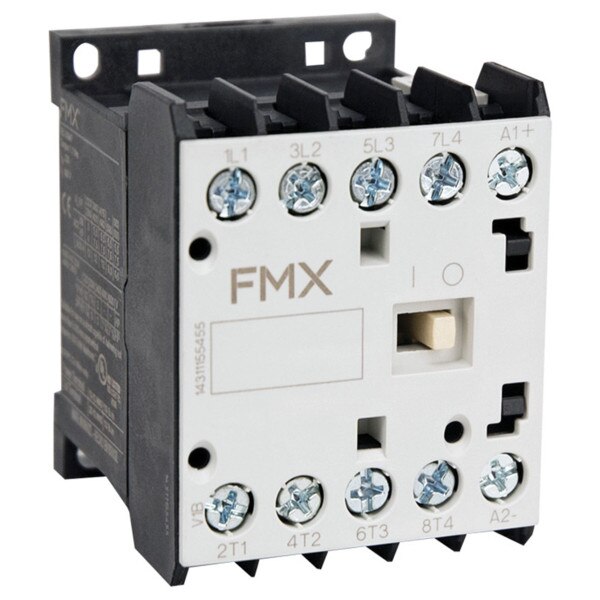

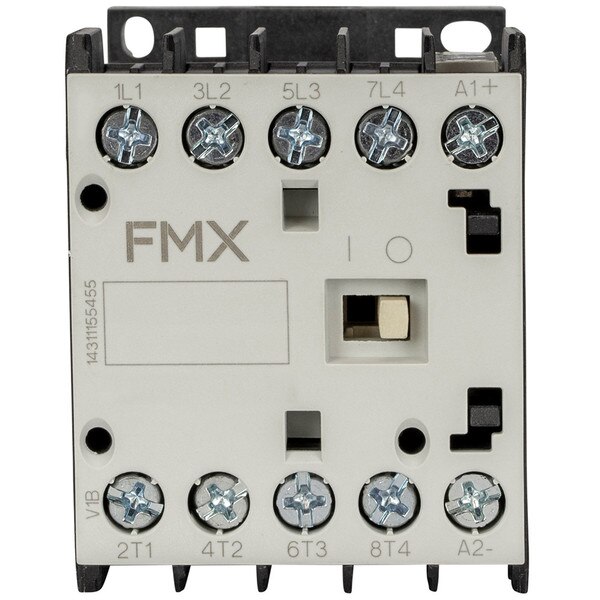

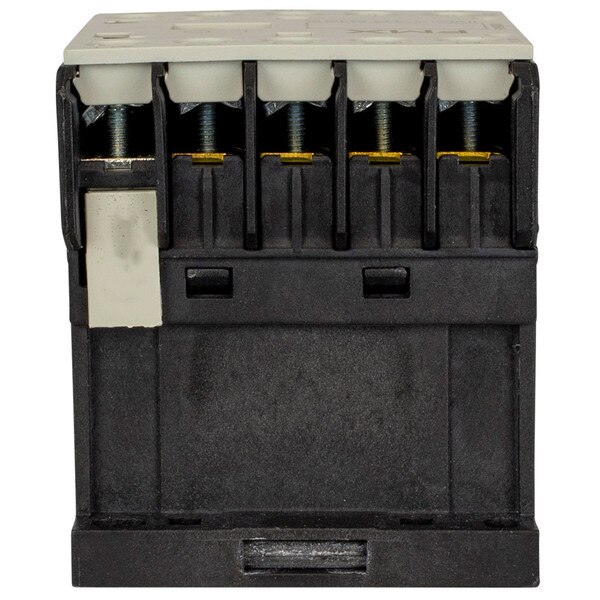

IMC422-07S-00-AC24, Mini Contactor, 7A, 4 Pole (2NO/2NC), Coil: 24VAC

FMX Mini Contactor, Non-reversing, 7A, 4 Pole (2NO/2NC), 600V, Screw Clamp Terminals, Coil: 24VAC, 60Hz

Item: IMC422-07S-00-AC24

(0) No Reviews yet

Weight: 0.5 lbs.

Made in: Brazil

$17.10

In Stock

SKU:IMC422-07S-00-AC24

Specifications

FMX Mini Contactor, Non-reversing, 7A, 4 Pole (2NO/2NC), 600V, Screw Clamp Terminals, Coil: 24VAC, 60Hz

General Purpose Rating (A)	18
Rated Operational Voltage (V)	12 to 690
Rated Insulation Voltage (V)	UL/CSA: 600, IEC/VDE 0660: 690
Rated Impulse Voltage IEC60947-1 (V)	4000
Rated Operating Frequency (Hz)	25 to 400
Degree of Protection	IP20
Vibration Resistance (5 to 200Hz)
Contactor Open (g)	2
Contactor Closed at Coil (g)	4
Mechanical Endurance (Million ops)	10
Electrical Endurance (Million ops) Shock Resistance (1/2 Sin Wave = 11ms)	1.4
Contactor Open (g)	6
Contactor Closed at Coil (g)	10
Terminal Capacity - Main Contacts (AWG)	1 or 2 x (18 to 12)
Screw Driver	Phillips #2
Tightening Torque (lb-in)	10
Environmental Conditions
Ambient Temperature	Storage: -67 to 176°F (-55 to 80°C), Operating: -4 to 140°F (-20 to 60°C)
Climatic Withstand	According to IEC 60680-2
Pollution Degree	3
Mounting	35mm DIN-rail Acc. DIN EN 50 022
Weight (lb)	0.42

Standard Voltages	12 to 660 (60Hz)
Coil Operating Limits
Monofrequency Coils (NO LOAD) (V)	0.85 to 1.1
Pick-up (V)	0.40 to 0.76 (AC-60Hz)
Drop-out (V)	0.25 to 0.65 (AC-60Hz)
Coil Consumption (Single coils)
Sealed (VA)	2.5 to 3.5
Inrush (VA)	35
Power Factor
Closed (Cos ɸ)	0.28
Opened (Cos ɸ)	0.85
Operating Time
Coil Energization - N.O. (ms)	8 to 20 (AC-60Hz)
Coil De-energization - N.O. (ms)	5 to 15 (AC-60Hz)
