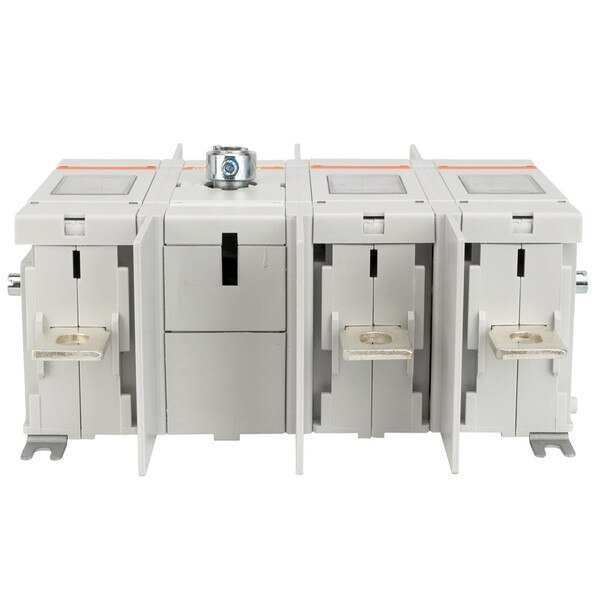

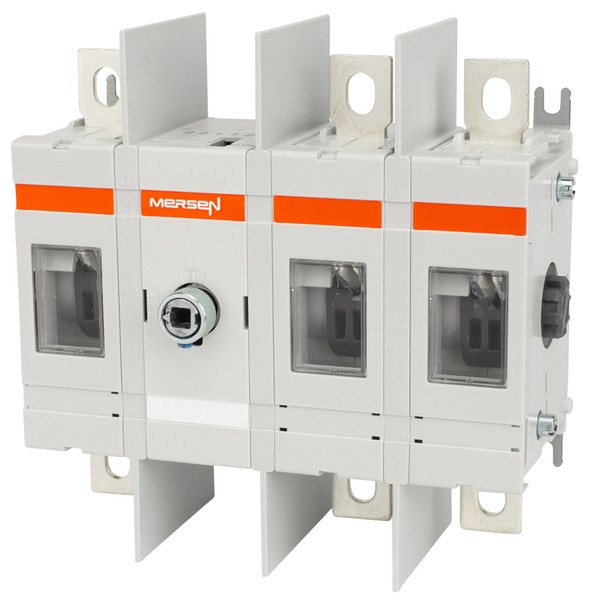

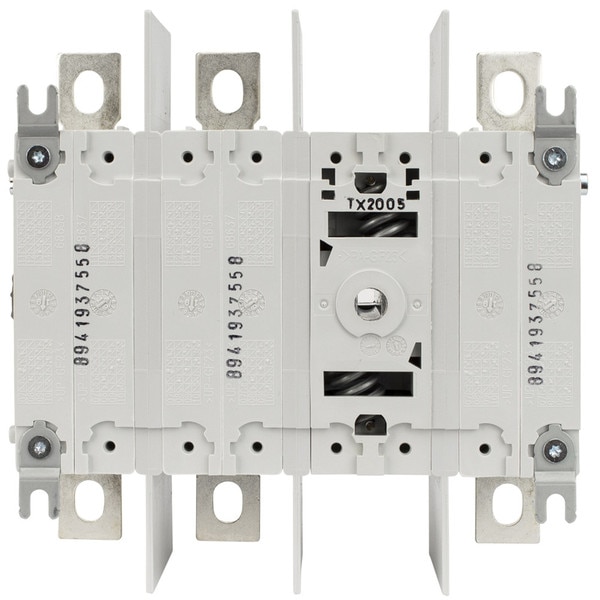

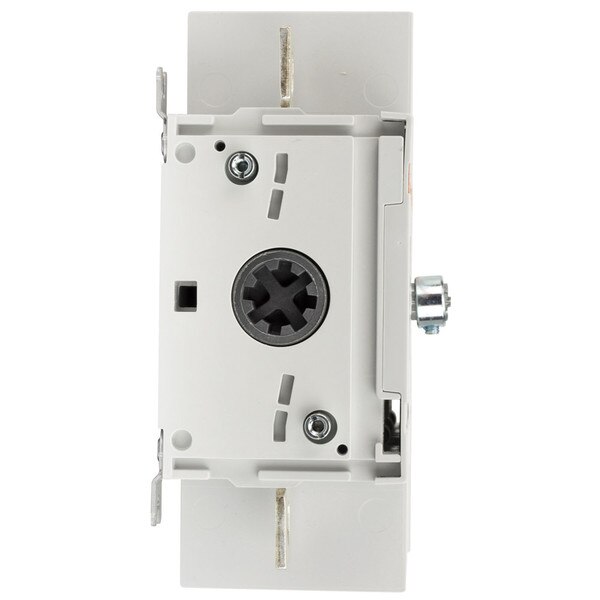

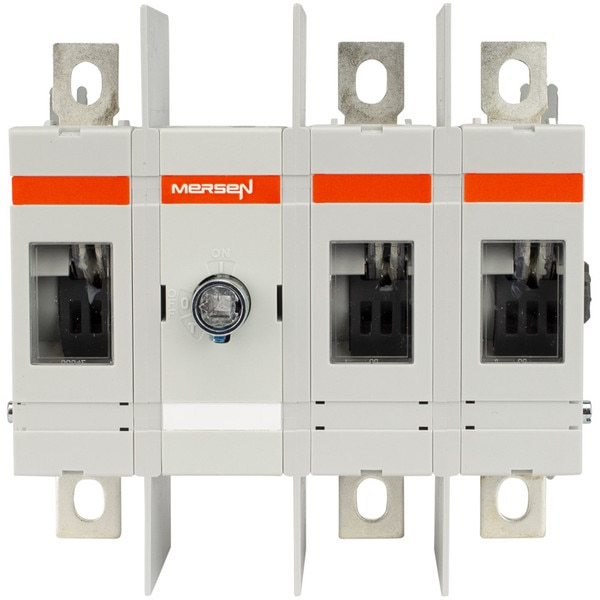

M200U12, UL98 Non-Fusible Disconnect, 3-pole, 200A
Mersen UL98 Non-fusible Disconnect Switch, Front operated, 3-pole, 1 + 2 configuration, 200A **Non-cancelable, Non-returnable**
Weight: 1.58 lbs.Made in: United States
M200U12, UL98 Non-Fusible Disconnect, 3-pole, 200A
Mersen UL98 Non-fusible Disconnect Switch, Front operated, 3-pole, 1 + 2 configuration, 200A **Non-cancelable, Non-returnable**
Weight: 1.58 lbs.Made in: United States
Specifications
Mersen UL98 Non-fusible Disconnect Switch, Front operated, 3-pole, 1 + 2 configuration, 200A **Non-cancelable, Non-returnable**
- Front, left side or right side operation
- UL98 Listed for service entrance
- Padlockable (all models)
- Defeatable (external rotary)
- Choice of handles and shafts
- Double breaking, silver-plated contacts
- SCCR: 100kA @ 480V with Class J fuses
- DIN-rail or surface mounting
- Optional auxiliary contacts (Max. four modules, eight contacts)
