SL36-ASM-GRAS-24V, Stacklight, Green, Red, Amber, Sound, 72dB, 24VAC/DC
SL36-ASM-GRAS-24V, Stacklight, Green, Red, Amber, Sound, 72dB, 24VAC/DC

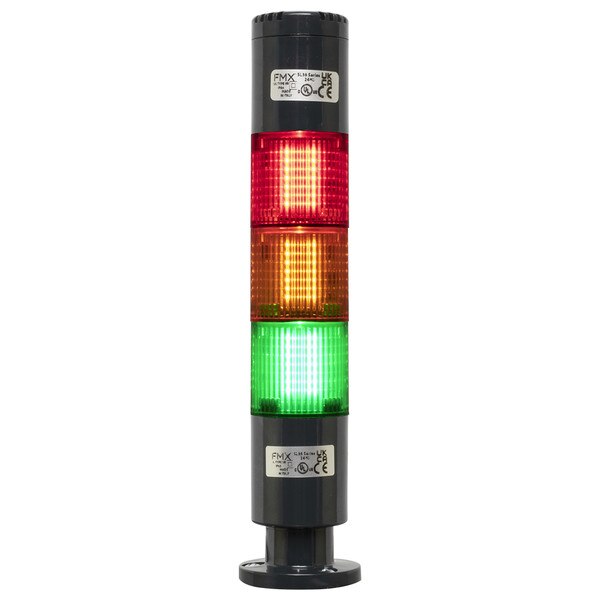

FMX 36mm Pre-assembled Stacklight, Green, Red, and Amber LED Light Modules with Sound Module, 72dB, 24VAC/DC, UL Type 3R, IP54
Item: SL36-ASM-GRAS-24V
Weight: 1.3 lbs.
Made in: Italy
$182.90
In Stock
SKU:SL36-ASM-GRAS-24V
Specifications
Related Items
Resources
Specifications
FMX 36mm Pre-assembled Stacklight, Green, Red, and Amber LED Light Modules with Sound Module, 72dB, 24VAC/DC, UL Type 3R, IP54
- Multiple Integrated LEDs for uniform light emission and longer life, no bulb required
- Heavy duty polycarbonate suitable for outdoor use

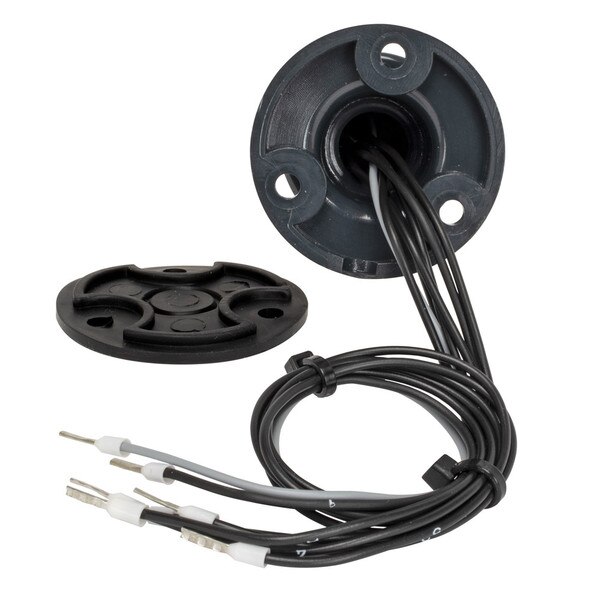

- Pre-wired with 9" pigtail
- Operating temp: -22 to 122°F (-30 to 50°C)
- UL Type 3R, IP65
- UL746C F1 UV Protection, UL94 V-2 flammability rating
- 2 year warranty
| Incoming Voltage | 24VAC/VDC |
| Lens Colors | Green/Red/Amber |
| Light Output | 1cd (p) |
| Sound Frequency | 4000Hz |
| Sound Module Type | Single-Tone, intermittent |
| Current Consumption-Sound | 24VAC/DC = 10mA |
| Current Consumption-Light | 24VAC/DC = 50mA per light module |
| Maximum Sound Level | 24VAC/DC = 72dB(A) at 3.3ft (1m) |
| Lamp Life | 100,000 Hours |
| Operating Temperature | -22° to 122°F (-30° to 50°C) |
| Insulation Resistance | Class 2, 4000V |
| Ambient Humidity | 50 to 90%RH |
| Module Housing Material | Polycarbonate, UL746C UL94 V-2, Gray RAL 7016 |
| Gaskets between Modules | Silicone |
| O-rings | VITON Rubber |
| Base Gasket | Santoprene |
| Light Module Protection Class | UL Type 3R, UL File # E362598 IP65 |
