CFW500A01P6B2DB66G2, VFD, 0.25HP, 230V 1/3 PH IN, 230V 3 PH OUT, 1.6FLA
CFW500A01P6B2DB66G2, VFD, 0.25HP, 230V 1/3 PH IN, 230V 3 PH OUT, 1.6FLA

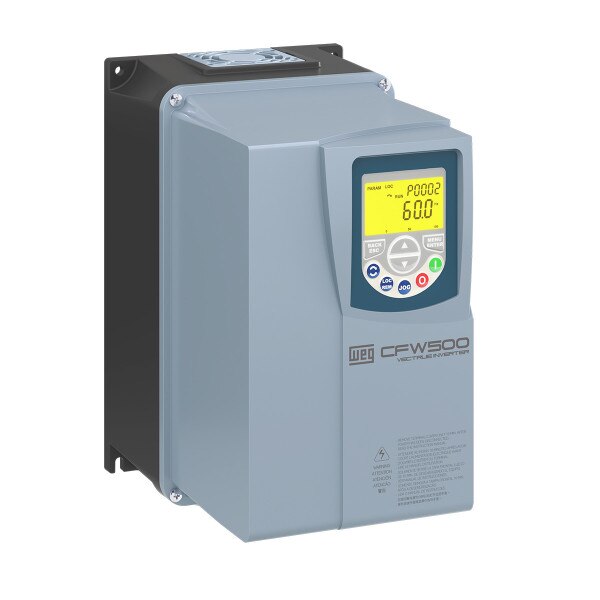

WEG CFW500 AC Drive, 0.25HP, 230V 1 PH/3 PH Input, 230V 3 PH Output, 1.6FLA, UL Type (NEMA) 4X / IP66
Item: CFW500A01P6B2DB66G2
Weight: 22.05 lbs.
Made in: Brazil
$487.40
Drop Ship Item
SKU:CFW500A01P6B2DB66G2
Specifications
Related Items
Resources
Specifications
WEG CFW500 AC Drive, 0.25HP, 230V 1 PH/3 PH Input, 230V 3 PH Output, 1.6FLA, UL Type (NEMA) 4X / IP66
- Supply Voltage: 200-460V - Single-Phase or Three-Phase
- Rated Currents: 1 to 33A (0.25 to 30cv)
- Controls: Vector (VVW), Scalar (V/F), Sensorless Vector or with Encoder and Energy Saving Mode (EOC)
- Built-in SoftPLC Function
- Multipump Applications
- RS485 Port (Built-in on any Model of Plug-in Module)
- Plug-in Cards for Resource Expansion
- Free Programming Software: WLP and SuperDrive G2
- Optional Items:
- RFI Filter
- USB Communication Port
- Memory Card: allows Data Transfer (Parameters and SoftPLC) between Inverters, without the necessity to energize them
- Network Communication: CANopen, DeviceNet, Profibus-DP, RS232, RS485, EtherNET-IP, Modbus-TCP and Profinet-IO
