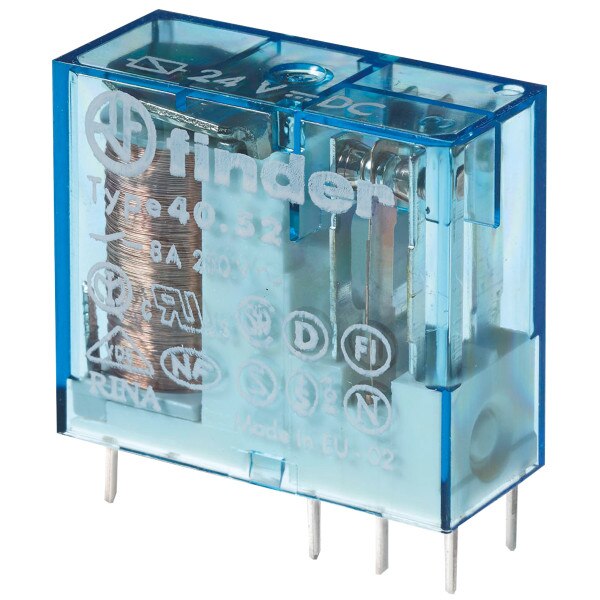

40.52.7.024.0000, Replacement PCB/Plug-In Relay, DPDT 8A, 24V DC coil, AgNi contact

IMO

40.52.7.024.0000, Replacement PCB/Plug-In Relay, DPDT 8A, 24V DC coil, AgNi contact

Finder Replacement PCB/Plug-In Relay, DPDT 8A, 24V DC coil, AgNi contact
Item: 40.52.7.024.0000
(0) No Reviews yet
Weight: 0.1 lbs.
Made in: Italy
$7.90
In Stock Icon
In Stock
SKU:40.52.7.024.0000

Orders up to 6PM ET Ship same day!

Specifications

Finder Replacement PCB/Plug-In Relay, DPDT 8A, 24V DC coil, AgNi contact


GENERAL SPECIFICATIONS

Configuration2CO (DPDT)
Contact Rating8A/250VAC
Rated Load AC12,000VA
Rated Load AC15 (230VAC)400VA
Single Phase Motor Rating (230VAC)0.3kW
Breaking Capacity DC130V : 8A
110V : 0.3A
220V: 0.12A
Minimum Switching Load300mW (5V/5mA)
Coil Nominal Voltage24VDC
Coil Consumption20mA
Coil Rated Power0.5W
Coil Voltage Operating Range17.5 to 42VDC
Coil Holding Voltage9.6VDC
Coil Must Drop-out Voltage2.4VDC
Coil Resistance1,200Ω
Mechanical Life20,000,000
Electrical Life at Rated AC1 Load200,000
Operate / Release Time12ms / 4ms
Insulation between Coil and Contacts
(1.2/50µs)
6kV (8mm)
Dielectric Strength Between Open Contacts1,000VAC
Ambient Temperature-40° to 185°F (-40 to 85°C)
Environmental ProtectionRTII
