FMX Enclosures


We carry a variety of products to handle your application’s thermal management needs from heating to cooling.




Filtered Cooling Fans
  • UL Type 12 & IP54 protection rating
  • UV stabilized
  • Screwless snap-in mounting system
  • Easily reverse fan direction without tools
  • Replace filter from outside enclosure




Filtered Exhaust Vents
  • UL Type 12 protection rating
  • Indoor and Outdoor (UV stabilized) models
  • Screwless snap-lock system for “click and fit” installation




Condensation Heaters
  • DIN-rail mount, IP20
  • 250VAC maximum
  • Touch-safe
  • CE/UL approved




Fan-Forced Heaters
  • DIN-rail mount, IP20
  • 240VAC maximum
  • Touch-safe
  • CE/UL approved




Thermostats
  • DIN-rail mount, IP20
  • 250VAC maximum
  • 10A resistive, 1.6A inductive contact rating
  • CE/UL approved

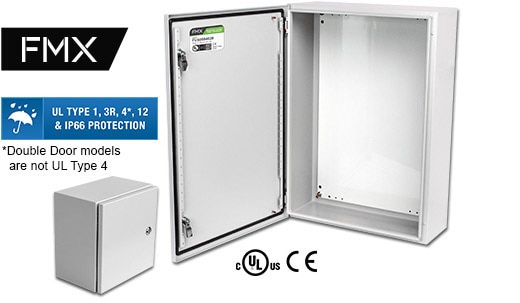

Single & Double Door

UL Type 1, 3R, 12, and IP66 Protection (with additional UL Type 4 rating for Single-Door)



Concealed Drip Shield

Drains water away from enclosure entry when door is open
Reinforced Doors

Stiffeners provide extra durability and strength to enclosure door
Poured-in-place Gasket

Guarantees Type 4* and IP66 protection.
*Double Door models are not UL Type 4
Textured Powder Coat

Double coat paint process provides superior corrosion resistance
Slotted Mounting Panel

Ordered separately as white powder coat or galvanized steel
Reversible Hinged Door

Reversible front door opens 130° and can be easily removed for modification
Drain Hole Plug

Easily removable plug to drain moisture from enclosure
Robotically Formed Structure

Provides greater rigidity and minimizes chance of damage to the polyurethane seal
Side-By-Side Mounting

Adjacent doors can be opened simultaneously



FMX enclosures are watertight and rainproof per UL protection ratings. Other protection rating details include:
Solids - UL Type 1, 3R, 4, & 12

  • • Incidental Contact
  • • Falling Dirt
  • • Circulating Dust
  • • Settling Airborne Dust
  • • Windblown Dust
    • Liquids - UL Type 3R, 4 & 12

  • • Light splash
  • • Hosedown & Splash
  • • Rain, Snow & Sleet
    • Chemicals - UL Type 12

  • • Non-pressurized, non-corrosive oil & coolant seepage



    • Single & Double Door

    FMX enclosures are manufactured with a high degree of precision to offer the most consistent quality. Automated manufacturing processes eliminate human error and ensure each enclosure is just as structurally sound and features the same durable finish as the last. The results are reduced cost and an unmatched value for customers.




    Laser System

    Fiber laser cutting machine with autonomous raw material loading and unloading for greater efficiency

    Robotic Welding for Studs

    Short arc welding process ensures a strong bond to enclosure


    Bending System

    4-station bending system

    Welding System

    Computer controlled MIG and laser welding for fast, clean welds with no drop-through

    Paint Process

    FMX enclosures receive a double coat to provide a higher level of corrosion resistance. Process includes:

    Step 1: Enclosure preparation
    Step 2: Primary coat
    Step 3: Secondary coat

    Testing

    Each enclosure is subject to detailed inspections and all designs and paints are lab tested to ensure quality





    FMX Enclosures
    Our new FMX enclosures were designed with the needs of FactoryMation customers in mind! Each series features multiple environmental ratings to suit a variety of applications. Choose from two different series of steel enclosure for industrial control panel applications.
    RELATED LINKS

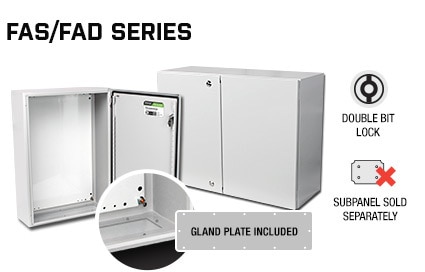

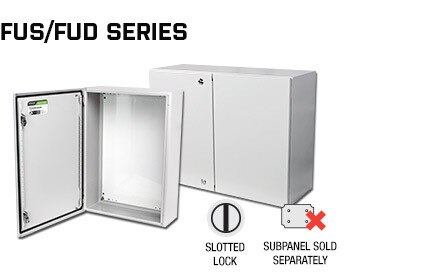

    FUS/FUD & FAS/FAD Series Brochure
    FMX Enclosures Catalog
    FMX Info
    FMX Info



    FPG Series One-piece Console Enclosure Systems

    FPG Series One-piece Console Enclosure Systems

    The FPG console systems consist of an integrated base and desk unit. The desk panel is held open by a pneumatic panel stay to ensure convenient access. The 600mm wide console can accept 19” rack mount accessories. Optional plinths may be added to raise the console height by up to 200mm for cabling.

    Console System Features
    • Subpanel included in base section
    • Keyed latches for security (DIN 3mm)
    • Adjustable bottom plates for cable glanding standard
    • UL Type 1, 12
    • Steel/galvanized steel construction
    • Reversible, concealed hinges
    • RAL 7035 powder coated finish

    Includes
    • Enclosure with doors
    • Desktop pneumatic panel stay
    • Grounding hardware
    • Metal DIN 3mm key



    FTB Series Screw Cover Junction Boxes

    FTB Series Screw Cover Junction Boxes

    Construction
    • Folded and seam welded
    • Four 9mm diameter holes for wall mounting
    • Supports for DIN-rails/Subpanel
    • Extruded polyurethane gasket

    Features
    • Complies with UL Type 1, 4, 12, IK10
    • RAL 7035 powder coated finish

    Components and Accessories
    • Mounting screws for subpanel or DIN rail



    FSR/FDR Series Stainless Steel Wallmount Enclosures

    FSR/FDR Series Stainless Steel Wallmount Enclosures

    Construction
    • Body: 1.5mm stainless steel
    • Door: 1.5mm stainless steel
    • Folded and seam welded
    • Four 9mm diameter holes for wall mounting
    • Reversible hinged door opening
    • Concealed hinges with captive pins
    • Extruded one-piece polyurethane gasket

    Features
    • Quarter turn latches with slotted lock are opened or closed with screwdriver
    • 316 stainless steel construction available at additional cost
    • Single door: UL Type 1, 3R, 4, 4X, 12 / IP66, IK10
    • Double door: UL Type 1, 3R, 12 / IP66, IK10

    Includes
    • Enclosure with door(s)
    • Grounding hardware
    • Subpanel hardware

    Optional Accessories
    • Subpanels
    • Inner door panels
    • 19” rack mounting profiles
    • Door latch options
    • Replacement doors
    • Subpanel depth adjust kit
    • Plinths for floor mounting
